Wavelength Division Multiplexers (WDMs)

    Introduction:

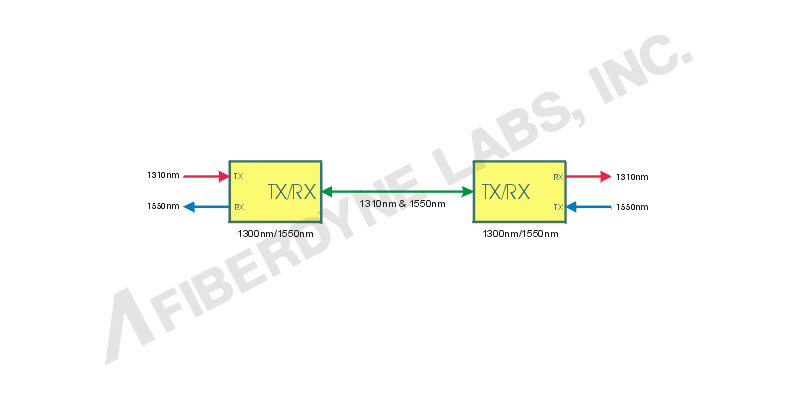

    Wavelength Division Multiplexers (WDMs) enable end users to channels of light in premium and high isolation grades. Available in premium grade 1310/1550nm variations, select from light, medium and heavy duty casings. Also available are WDM modules for wallmount and rackmount, as well as termination boxes. All WDMs are terminated with your requirements in mind and custom connectorization is available upon request. Ask your Fiberdyne sales representative about custom requirements you may have.



PDF Version of Web page Wavelength Division Multiplexers (WDMs) Technical Data Sheet



Wavelength Division Multiplexer Specifications
Type/Grade Premium High Isolation Wideband FTTX
CenterWavelength (nm)
Wavelength Range (nm)
1310/1550
± 10
1310/1550
± 15
1310/1550
± 50
1310/1490 = 1550
1260-1500
1540-1570

Insertion Loss (dB*)
Isolation (dB)
Polarization Dependant Loss (dB)
<0.4
>20
<0.1
<0.8
>40
<0.1
<0.8
>45
<0.1


Directivity (dB)
Return Loss (dB)
>60
>65
>60
>65
>55
>55


Operating Temperature (°C)
Storage Temperature (°C)
-40 To +85
-40 To +85
-40 To +85
-40 To +85
   0 To +65
-40 To +85


Filter Case Only
Wide Band 1260-1360
1460-1620
and
FTTH 1260-1500
1540-1565
Available in Modules



Specifications:
Technical Drawing Technical Data Sheet

Singlemode Fused Wavelength Division Multiplexer
FXXXS 12131 5X0XX
 2345 678910 1112131415
F = Fiberdyne Labs

2nd Digit Grade P - Premium           W -Wideband High ISO
H - High Isolation   S - Wideband Standard ISO
T - FTTX
3rd Digit Type A - Fused BiConical Taper
T - Thin Film Filter
4th Digit See Packaging Table
For Measurements
L - Light Duty
M- Medium Duty
H - Heavy Duty
Y - Y Cable, 1 Meter Length
2 = 2MM Heavy Duty
5th Digit Fiber Type S - Singlemode
6th & 7th Digits Configuration 12 - 1 X 2
8th & 9th Digits Center Wavelength #1 13 - 1310 nm (+ 1490 For FTTX)
10th & 11 Digits Center Wavelength #2 15 - 1550 nm
12th Digit Connector Type 0 = None
1 = ST/UPC
7 = FC/UPC
A = FC/APC
6 = SC/UPC
B = SC/APC
L = LC
N = LC/APC
13th Digit Reserved 0 - Reserved
14th Digit Overall Length Specify (1 or 2 Typical)
15th Digit Length Unit M - Meter (1 or 2 Overall Length)
F - Feet



Packaging Table
L - Light Duty (250um, 0.13 x 2.2")
M - Medium Duty (900um, 0.13 x 2.2")
H - Heavy Duty (3mm, 4" x 0.6 x 0.3")
Y - Y Cable (3mm, 1 x 2 only)
2 = 2MM Heavy Duty
* Only Available in premium grade

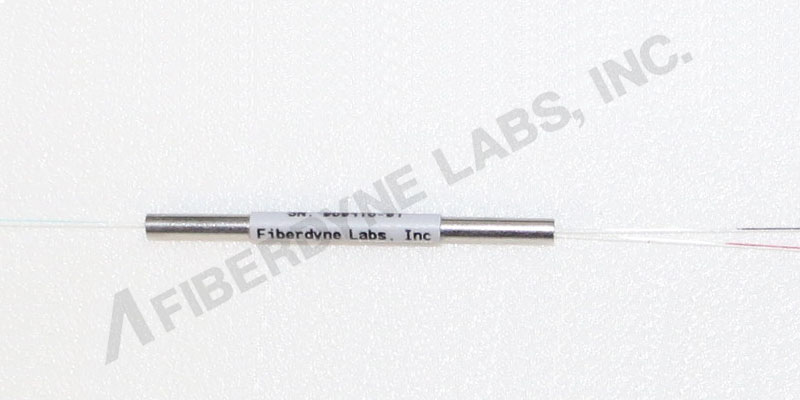

Wavelength Division Multiplexers Light Duty

Part Number Description Buy
FPALS121315001M Fiberdyne Labs 1310/1550nm WDM,
Premium Grade, Light Duty,
No Connectors
Call to Order

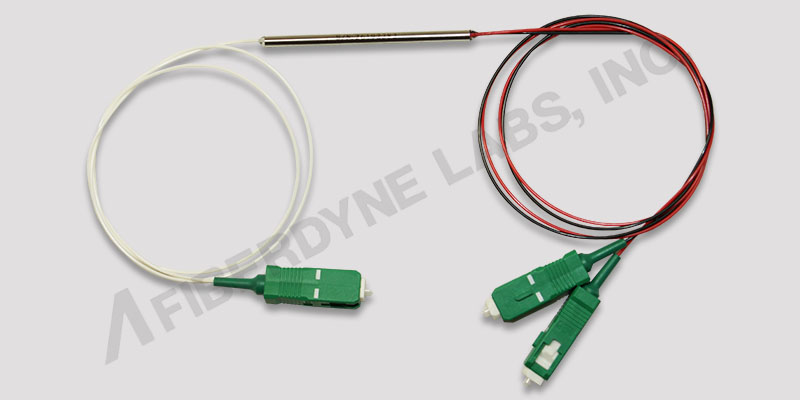

Wavelength Division Multiplexers Medium Duty

Part Number Description Buy
FPAMS121315001M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Medium Duty,
No Connectors
Call to Order
FPAMS121315101M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Medium Duty,
ST/UPC Style Connectors
Call to Order
FPAMS121315701M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Medium Duty,
FC/UPC Style Connectors
Call to Order
FPAMS121315A01M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Medium Duty,
FC/APC Style Connectors
Call to Order
FPAMS121315601M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Medium Duty,
SC/UPC Style Connectors
Call to Order
FPAMS121315B01M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Medium Duty,
SC/APC Style Connectors
Call to Order



Wavelength Division Multiplexers Heavy Duty

Part Number Description Buy
FPAHS121315001M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Heavy Duty,
No Connectors
Call to Order
FPAHS121315101M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Heavy Duty,
ST Style Connectors
Call to Order
FPAHS121315701M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Heavy Duty,
FC/UPC Style Connectors
Call to Order
FPAHS121315A01M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Heavy Duty,
FC/APC Style Connectors
Call to Order
FPAHS121315601M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Heavy Duty,
SC/UPC Style Connectors
Call to Order
FPAHS121315B01M Fiberdyne Labs 1310/1550nm, WDM,
Premium Grade, Heavy Duty,
SC/APC Style Connectors
Call to Order



High Isolation Wavelength Division Multiplexer Modules

Part Nubmer Description Buy
FHAHS121315001M Fiberdyne Labs WDM Module, 1310/1550nm, High Isolation,
No Connectors
Call to Order
FHAHS121315101M Fiberdyne Labs WDM Module, 1310/1550nm, High Isolation,
ST Style Connectors
Call to Order
FHAHS121315701M Fiberdyne Labs WDM Module, 1310/1550nm, High Isolation,
FC/UPC Style Connectors
Call to Order
FHAHS121315A01M Fiberdyne Labs WDM Module, 1310/1550nm, High Isolation,
FC/APC Style Connectors
Call to Order
FHAHS121315601M Fiberdyne Labs WDM Module, 1310/1550nm, High Isolation,
SC/UPC Style Connectors
Call to Order
FHAHS121315B01M Fiberdyne Labs WDM Module, 1310/1550nm, High Isolation,
SC/APC Style Connectors
Call to Order
