Passive Optical Patchcords (FPOP) Cable Assemblies
- Description:
Fiberdyne Labs’ new Passive Optical Patchcord (FPOP) cable assemblies provide a convenient, small-package option in cable assembly form for a wide variety of optical components.

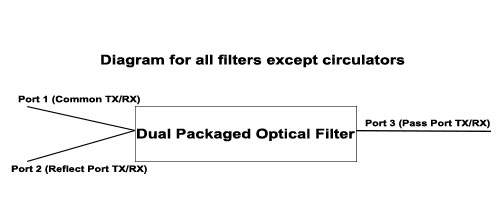

Filter options include DWDM, CWDM, fiber splitters, isolators, circulators, and a wide variety of WDMs. The filters are dual packaged inside a small, heavy duty, inline housing and provide for both TX and RX functions.
The FPOP assemblies are available with either ½ meter or 1 meter leg lengths. The standard connector offering is a switchable LC/UPC uniboot, but other custom options are available.
Features:
- Small Rugged Package
- Convenient Duplex Cable Design
- Wide Variety of Filter Options
Benefits:
- Small cable assembly design reduces need for larger modules
- LC switchable uniboot allows for easy polarity swap
| FPOP Build Matrix |
| FPOP |
- |
XXX |
XX |
0 |
H |
2 |
X |
S |
| F = Fiberdyne |
|
Product Family |
Options |
Reserved |
Package |
Fiber Type |
Cable Leg Length |
Connector |
| P = Passive |
|
CWD = CWDM |
XX = See Tables |
0 = Reserved |
H = Heavy Duty |
2 = 2mm |
0 = 0.5m (1 Meter Overall) |
Standard Offering: |
| O = Optical |
|
DW1 = DWDM 100G |
|
|
|
|
1 = 1.0m (2 Meter Overall) |
S = Switchable Uniboot LC/UPC |
| P = Patchcord |
|
DW2 = DWDM 200G |
|
|
|
|
|
|
| |
|
C10 = CWDM
10-Skip-0 Filter |
|
|
|
|
|
|
| |
|
WDM = WDM |
|
|
|
|
|
Custom Offerings: |
| |
|
ST9 = SM Fiber Tap |
|
|
|
|
|
C = LC/UPC (Duplex Clipped) |
| |
|
MT6 = 62.5 Fiber Tap |
|
|
|
|
|
F = LC/APC (Duplex Clipped) |
| |
|
MT5 = MM 50
OM3 Fiber Tap |
|
|
|
|
|
W = SC/APC (Duplex Clipped) |
| |
|
CIR = Circulator |
|
|
|
|
|
Y = SC/UPC (Duplex Clipped) |
| |
|
ISO = Isolator |
|
|
|
|
|
|
|
Note: A wide variety of 100GHz DWDM Skip Filters are available by special request. Contact Sales for more information.
FPOP Build Matrix
CWDM CWDM Introduction
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| CWD = CWDM |
27 = 1270/1271 |
Common |
Network |
1270/1271 |
Specifications |
| |
29 = 1290/1291 |
Common |
Network |
1290/1291 |
Specifications |
| |
↓ |
↓ |
↓ |
↓ |
|
| |
61 = 1610/1611 |
Common |
Network |
1610/1611 |
Specifications |
|
DWDM 100GHz DWDM Introduction
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| DW1 = DWDM 100GHz |
10 = Ch10 (1569.59nm) |
Common |
Network |
DWDM Ch 10 |
Specifications |
| |
11 = Ch11 (1568.11nm) |
Common |
Network |
DWDM Ch 11 |
Specifications |
| |
↓ |
↓ |
↓ |
↓ |
|
| |
63 = Ch63 (1527.22nm) |
Common |
Network |
DWDM Ch 63 |
Specifications |
|
DWDM 200GHz DWDM Introduction
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| DW2 = DWDM 200GHz |
21 = Ch21 (1560.61nm) |
Common |
Network |
DWDM Ch 21 |
Specifications |
| |
22 = Ch22 (1559.79nm) |
Common |
Network |
DWDM Ch 22 |
Specifications |
| |
↓ |
↓ |
↓ |
↓ |
|
| |
60 = Ch60 (1529.55nm) |
Common |
Network |
DWDM Ch 60 |
Specifications |
|
CWDM 10-Skip-0 CWDM 10 Skip 0Band Filter
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| C10 = CWDM 10-Skip-0 |
27 = 1270-1450 |
Common |
1462.5-1620 |
1260-1457.5 |
Specifications |
|
Singlemode Fiber Tap
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| ST9 = SM Fiber Tap |
01 = 99/1 (1% Tap) |
Network (99%) |
Tap (1%) |
Common |
Specifications |
| |
05 = 95/5 (5% Tap) |
Network (95%) |
Tap (5%) |
Common |
Specifications |
| |
↓ |
↓ |
↓ |
↓ |
|
| |
50 = 50/50 (50% Tap) |
Network (50%) |
Tap (50%) |
Common |
Specifications |
|
Multimode 62.5 Fiber Tap
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| MT6 = MM 62.5 Fiber Tap |
01 = 99/1 (1% Tap) |
Network (99%) |
Tap (1%) |
Common |
Specifications |
| |
05 = 95/5 (5% Tap) |
Network (95%) |
Tap (5%) |
Common |
Specifications |
| |
↓ |
↓ |
↓ |
↓ |
|
| |
50 = 50/50 (50% Tap) |
Network (50%) |
Tap (50%) |
Common |
Specifications |
|
Multimode 50 OM3 Fiber Tap
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| MT5 = MM 50 OM3 Fiber Tap |
01 = 99/1 (1% Tap) |
Network (99%) |
Tap (1%) |
Common |
Specifications |
| |
05 = 95/5 (5% Tap) |
Network (95%) |
Tap (5%) |
Common |
Specifications |
| |
↓ |
↓ |
↓ |
↓ |
|
| |
50 = 50/50 (50% Tap) |
Network (50%) |
Tap (50%) |
Common |
Specifications |
|
WideBand Isolator WideBand Isolator
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| WIS = Wideband Isolator |
CL = C+L Band 1530-1610 |
Input |
N/A |
Output |
Specifications |
| |
SL= S+C+L Band 1460-1620 |
Input |
N/A |
Output |
Specifications |
|
WDM Wavelength Division Multiplexers
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| WDM = WDM |
PA = Premium FBT WDM |
1310 |
1550 |
Common |
Specifications |
| |
WH = Wideband High ISO |
Common |
1260-1360 |
1460-1620 |
Specifications |
| |
WS = Wideband STD ISO |
Common |
1410-1620 |
1260-1360 |
Specifications |
| |
TF = FTTX WDM |
Common |
1260-1500 |
1535-1620 |
Specifications |
| |
RB = Red/Blue WDM |
Common |
1520-1543 |
1547-1570 |
Specifications |
| |
CB = C Band WDM |
Common |
1260-1517.5 & 1582.5-1620 |
1528.5-1565 |
Specifications |
| |
CL = C/L Band WDM |
Common |
1525-1562 |
1570-1615 |
Specifications |
| |
GP = GPON WDM |
Common |
1260-1280 & 1525-1620 |
1290-1330 & 1480-1500 |
TBD |
| |
XG = XGSPON WDM |
Common |
1290-1560 & 1595-1620 |
1260-1280 & 1575-1580 |
TBD |
| |
N2 = NGPON2 WDM |
Common |
1260-1500 & 1550-1581 & 1606-1650 |
1524-1544 & 1596-1603 |
TBD |
| |
N3 = NGPON3 WDM |
Common |
1260-1500 & 1550-1581 & 1640-1675 |
1524-1544 & 1596-1603 |
TBD |
| |
25 = 25 GSPON WDM |
Common |
1260-1280 & 1400-1650 |
1284-1360 |
TBD |
| |
OT = OTDR WDM (1610 Bandpass) |
Common |
1260-1605 |
1610-1650 |
Specifications |
|

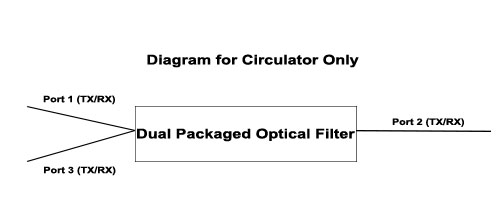

Circulator 3 Port Optical Circulator |
| Product Family |
Options |
Port 1 |
Port 2 |
Port 3 |
Full Specifications |
| CIR = Circulator |
13 = 1310 (1290-1330) |
Port 1 |
Port 2 |
Port 3 |
Specifications |
| |
CB = C Band (1525-1570) |
Port 1 |
Port 2 |
Port 3 |
Specifications |
| |
CL = C/L Band (1525-1610) |
Port 1 |
Port 2 |
Port 3 |
Specifications |
| |
LB = L Band (1570-1610) |
Port 1 |
Port 2 |
Port 3 |
Specifications |
|
