LGX Wall Mount Bracket, 1U Wall Mount Bracket, 2U Wall Mount Bracket



Wall Mount Bracket for LGX Modules

LGX Wall Mount Bracket is designed to accept 1 singlewide LGX module or panel (not included).
Two (2) Velcro straps are included for cable management.

This lightweight but durable wall mount bracket is made from aluminum finished with a fine texture, black, powder coat. It can be used in many spaces where a small number of fibers are required and is populated with an LGX module or an LGX fiber panel, both are custom to the end-user’s requirements and are purchased separately.

This bracket can be mounted to the wall or other flat, sturdy surface, in any orientation. The two Velcro straps are used to secure the fibers which plug into the module or panel.

Dimensions: 1.19" wide x 8” long x 7.07” high

Specifications:
Technical Data Sheet



Part Number: Description: Buy: WB-LGX1-CM Fiberdyne Labs LGX Wall Mount Bracket is designed to accept 1 LGX module or panel (Not Included). 2 velcro straps are included. Specifications: PDF Drawing  Call to Order



Wall Mount Bracket for 1U Rack Mount Boxes or Equipment

- Lightweight yet extremely reliable, this 1U wall-mounted vertical server rack is the right solution where space doesn't allow for conventional racking - under a desk or workstation (where it mounts horizontally), on a smaller wall, or on almost any other even surface.
- Access to mounted network equipment and cables is increased because the rack hangs flush to the wall in any orientation.
- The rack is designed to install with ease, all hardware and anchors for both wall and equipment mounting are included.
- It features heavy-duty, high-quality cold rolled steel, welded construction and a black powder coated finish for durability.
- The product supports standard 19" rack mount servers, network equipment and rack mount boxes to a maximum weight of 44 lbs., evenly distributed.

- Dimensions: 2” wide x 4” high x 19.25” long.

Complies with: CE, RoHS, EIA/ECA-310-E, DIN 41494, IEC-60297-3-100

Stock photo. Item may vary.
Specifications:
Technical Data Sheet

Part Number: Description: Buy: FWB-19-01U Fiberdyne Labs 1U Wall Mount Bracket can be mounted vertically or horizontally. Call to Order



New York

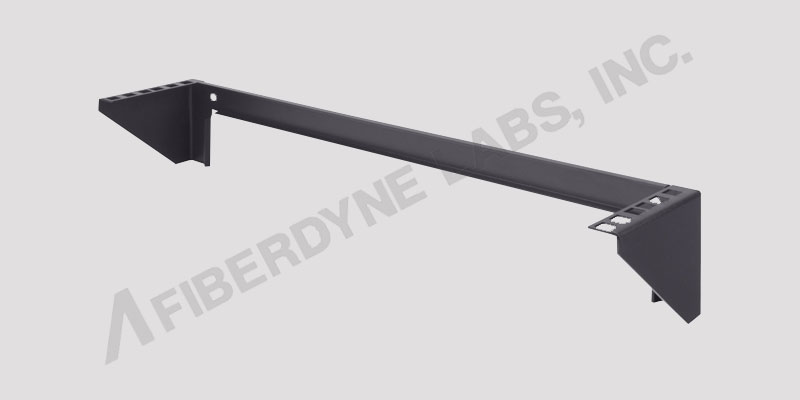

Wall Mount Bracket for 2U Rack Mount Boxes or Equipment

- Lightweight yet extremely reliable, this 2U wall-mounted vertical server rack is the right solution where space doesn't allow for conventional racking - under a desk or workstation (where it mounts horizontally), on a smaller wall, or on almost any other even surface.
- Access to mounted network equipment and cables is increased because the rack hangs flush to the wall in any orientation.
- The rack is designed to install with ease, all hardware and anchors for both wall and equipment mounting are included.
- It features heavy-duty, high-quality cold rolled steel, welded construction and a black powder coated finish for durability.
- The product supports standard 19" rack mount servers, network equipment and rack mount boxes to a maximum weight of 44 lbs., evenly distributed.

- Dimensions: 3.75” wide x 4” high x 19.25” long.

Complies with: CE, RoHS, EIA/ECA-310-E, DIN 41494, IEC-60297-3-100

Stock photo. Item may vary.
Technical Data Sheet

Part Number: Description: Buy: FWB-19-02U Fiberdyne Labs 2U Wall Mount Bracket can be mounted vertically or horizontally. Call to Order
