Fiberdyne Labs, Inc. FETB-01 Outdoor Environmental Distribution Box

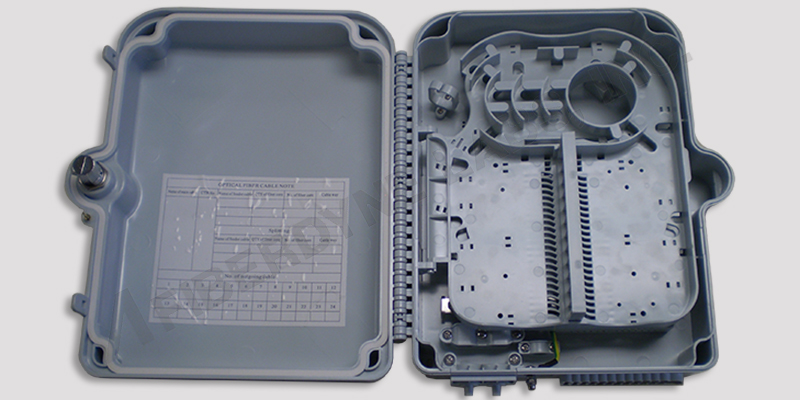

FETB-01 Outdoor Environmental Distribution Box (Wallmount)



Introduction:

The FETB-01 environmental fiber optic termination box is a low cost convenient solution can be used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system or used as a traditional wall mount box for indoor applications. The FETB-01 provides for fiber optic splicing, optical splitting, and fiber distribution in a light weight rugged package.

New York



Features:

• - Key access for additional security
• - Rugged ABS construction, water-proof, dust-proof, anti-aging, environmental protection level up to IP65.
• - Strain relief clamps for feeder or drop cable, fiber splicing, optical splitting, storage, distribution.
• - Cable, pigtails, patch cords are routed separately to avoid interference with each other for easy maintenance.

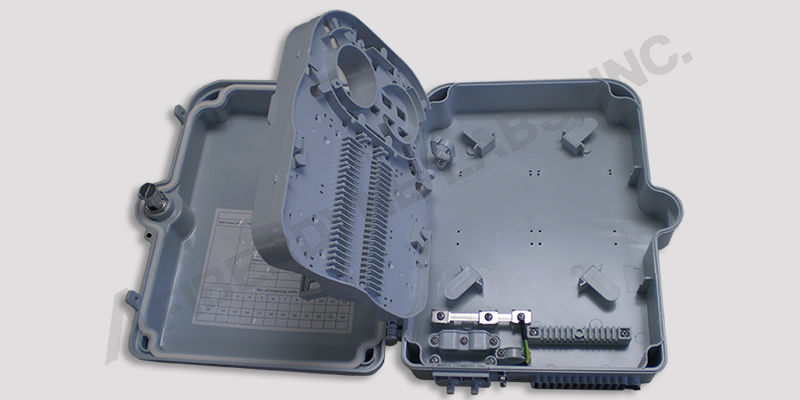

• - Distribution panel flips up, allowing feeder cable to be installed in a split-joint grommet for easy maintenance and installation.
• - Cabinet can be installed either wall-mounted or pole-mounted, suitable for both indoor and outdoor uses.
• - Grounding stud, knockout for cable entry, and full length hinge smooth operation.



Specifications:

• - Environmental Data
      - Working Temperature: -40°C~+85°C
      - Relative Humidity: ≤85% (+30°C)
      - Atmospheric Pressure: 70Kpa~106Kpa
      - Water Resistance: Up to IP65 rated

• - Main Technical Data
      - Life of insertion and extraction: >1000 time
      - Lighting Protection Data
      - The grounding device is isolated with the cabinet, isolation resistance is no less than 1000MΩ
      - Water Resistance: Up to IP65 rated



Technical Data Sheet



FETB-01 Outdoor Environmental Wallmount Termination Box with 24 SC Adapters

Model Description Buy FETB-01 Environmental Box (No adapters) Call to Order FETB-01-24SCSG Environmental Box Preloaded with 24 Simplex SC Adapters Green Call to Order FETB-01-24SCSB Environmental Box Preloaded with 24 Simplex SC Adapters Blue Call to Order FETB-01-24SCSQ Environmental Box Preloaded with 24 Simplex SC Adapters Aqua Call to Order FETB-01-24SCSE Environmental Box Preloaded with 24 Simplex SC Adapters Beige Call to Order



FETB-01 Outdoor Environmental Wallmount Termination Box with 12 LC Adapters

Model Description Buy FETB-01-12LCDG Environmental Box Preloaded with 12 Duplex LC Adapters Green Call to Order FETB-01-12LCDB Environmental Box Preloaded with 12 Duplex LC Adapters Blue Call to Order FETB-01-12LCDQ Environmental Box Preloaded with 12 Duplex LC Adapters Aqua Call to Order FETB-01-12LCDE Environmental Box Preloaded with 12 Duplex LC Adapters Beige Call to Order
