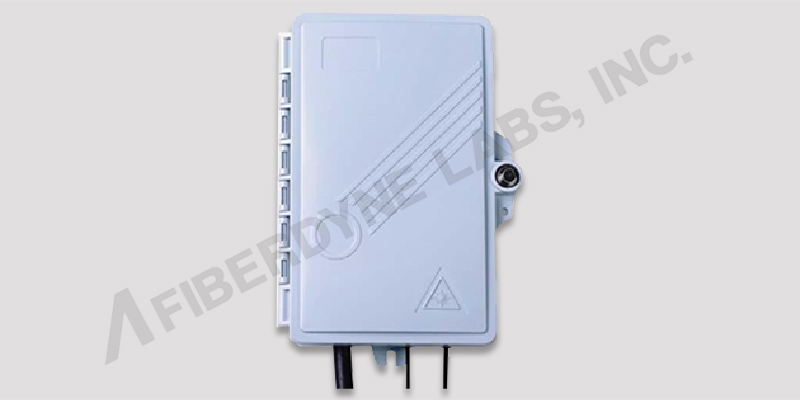

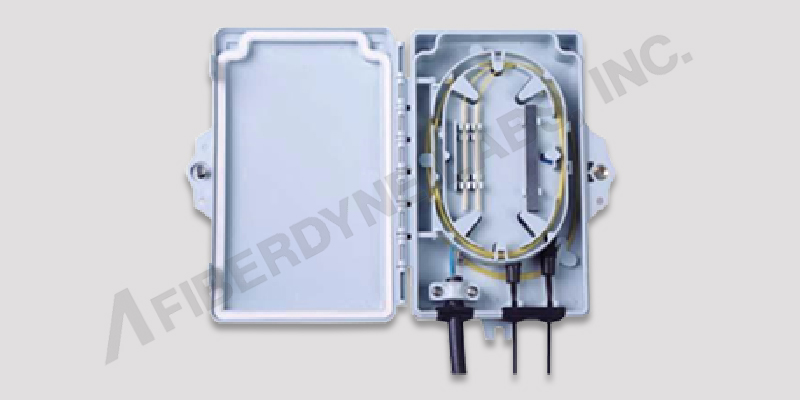

FETB-03 Environmental Fiber Optic Termination Box (Wallmount)



Introduction:

The FETB-03 box is used as a termination point for the feeder cable to connect with drop cable in FTTX communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one unit. Meanwhile, it provides solid protection and management for the FTTX network building.



Features:

• - Total enclosed structure, be in niceshape
• - Protects and manages cable effectively.
• - Secured with anti-theft locking mechanism.
• - Standard size, light weight.
• - High quality PC +ABS material.
• - Good properties of dust, and moisture proofing, IP65.
• - Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution... etc all in one.
• - Suitable for SC and LC duplex adapter and pigtail.
• - Easy to operate.
• - Suitable for both outdoor and indoor use.



Application:

• - Telecommunication subscriber loop
• - Fiber to the home (FTTH)
• - LAN/WAN



Specifications:

Technical Data Sheet



FETB-01 Outdoor Environmental Wallmount Termination Box with 24 SC Adapters

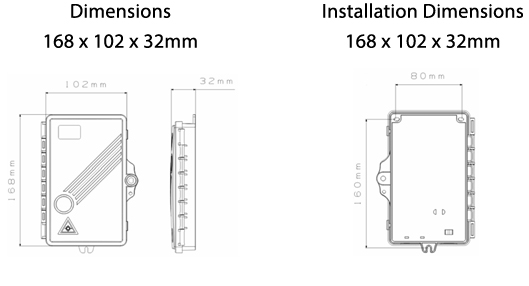

Model Description Overall Dimension (Fig 1) Max Capacity Installation Dimension (Fig 2) Buy   A*B*C (mm) Splitter Splice A*B (mm)   FETB-03 Environmental Box (No adapters) 168*102*32 2 2 160*80 Call to Order FETB-03-02SCSG Environmental Box Preloaded with 2 Simplex SC Adapters Green 168*102*32 2 2 160*80 Call to Order FETB-03-02SCSB Environmental Box Preloaded with 2 Simplex SC Adapters Blue 168*102*32 2 2 160*80 Call to Order FETB-03-02SCSQ Environmental Box Preloaded with 2 Simplex SC Adapters Aqua 168*102*32 2 2 160*80 Call to Order FETB-03-02SCSE Environmental Box Preloaded with 2 Simplex SC Adapters Beige 168*102*32 2 2 160*80 Call to Order FETB-03-01LCDG Environmental Box Preloaded with 1 Duplex LC Adapters Green 168*102*32 2 2 160*80 Call to Order FETB-03-01LCDB Environmental Box Preloaded with 1 Duplex LC Adapters Blue 168*102*32 2 2 160*80 Call to Order FETB-03-01LCDQ Environmental Box Preloaded with 1 Duplex LC Adapters Aqua 168*102*32 2 2 160*80 Call to Order FETB-03-01LCDE Environmental Box Preloaded with 1 Duplex LC Adapters Beige 168*102*32 2 2 160*80 Call to Order



Technical Data

Work Temperature -40°C~+85°C Relative Humidity ≤ 85% (+30°C) Atmospheric Pressure 70Kpa~106Kpa Insert Loss ≤ 0.2dB UPC Return Loss ≥ 50dB APC Return Loss ≥ 60dB Insert and Pull out Life ≥ 1000 times Insulation IR ≥ 1000m Ω/500V (Direct Current) Isolation Voltage 3000V/Min, no breakdown or flashover. U ≥ 3000V (Direct Current)





Wiring Diagram

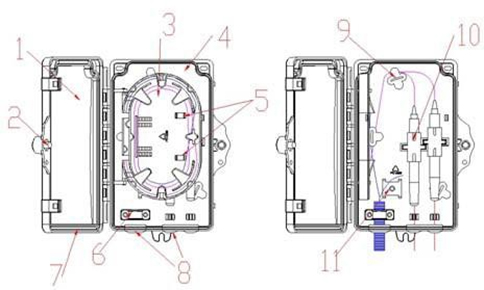

1. Lid 2. Lock 3. Splicing Flap plate 4. Base 5. PLC Mounting Position 6. Main Cable mound layer 7. Seal Gasket 8. Water-proof sleeve 9. Drop cable clip 10. Adapter 11. Main cable strengthen mound layer
