MPO Configurations 40G

The following products are listed below. Click on an item to locate within this page.

• MPO Trunk Indoor Configurations 40G
• MPO Trunk Indoor/Outdoor Configurations 40G
• MPO 2mm Breakout Configurations 40G
• MPO 900um Breakout Configurations 40G
• MPO LGX Cassette Configurations 40G
• MPO LGX Cassette Taps Ports Configurations 40G
• MPO Conversion Configurations 40G
• MPO Conversion LGX Cassette Configurations 40G
• MPO Conversion Rack Mount Module Configurations 40G
• MPO Distribution Center Configurations 40G
• MPO Extension High Count Trunk



• Associated Products
• 6140 Gateway 80G Point-to-Point Managed Multiplexer
• Cat 5E
• Cat 6

Select Item to Purchase

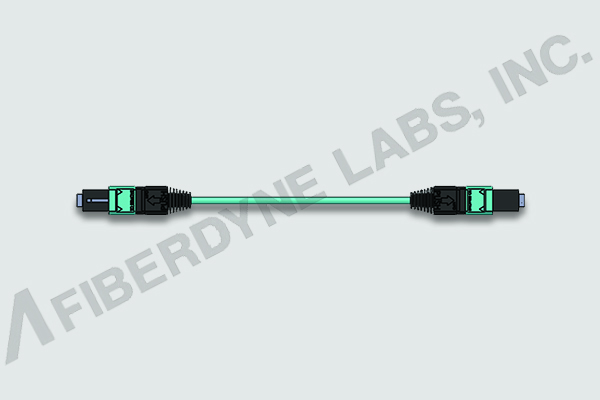

MPO Trunk Indoor Configurations 40G

Pinout Design Fiberdyne Configuration Description Method A 8 MPO-MPO, Trunk 12 Pin 8 Fiber to 12 Pin 8 Fiber 40G, Method A Polarity A 900 MPO-MPO 12 Pin 12 Fiber to 12 Pin 12 Fiber, Mapped Pin 1 to Pin 1, Polarity A Method B 9 MPO-MPO, Trunk 12 Pin 8 Fiber to 12 Pin 8 Fiber 40G, Method B Polarity B 901 MPO-MPO 12 Pin 12 Fiber to 12 Pin 12 Fiber, Mapped Pin 1 to Pin 1, Polarity B Method B 597 MPO-MPO, Trunk 8 Pin 8 Fiber to 8 Pin 8 Fiber 40G, Method B Method A 46 Trunk, Two 12 Pin 8 Fiber MPO to Two 12 Pin 8 Fiber MPO, Method A Method A 47 Trunk, Three 12 Pin 8 Fiber MPO to Three 12 Pin 8 Fiber MPO, Method A Method A 48 Trunk, Four 12 Pin 8 Fiber MPO to Four 12 Pin 8 Fiber MPO, Method A Method A 50 Trunk, Six 12 Pin 8 Fiber MPO to Six 12 Pin 8 Fiber MPO, Method A Method B 51 Trunk, Two 12 Pin 8 Fiber MPO to Two 12 Pin 8 Fiber MPO, Method B Method B 52 Trunk, Three 12 Pin 8 Fiber MPO to Three 12 Pin 8 Fiber MPO, Method B Method B 53 Trunk, Four 12 Pin 8 Fiber MPO to Four 12 Pin 8 Fiber MPO, Method B Method B 55 Trunk, Six 12 Pin 8 Fiber MPO to Six 12 Pin 8 Fiber MPO, Method B



MPO Trunk Indoor/Outdoor Configurations 40G

Pinout Design Fiberdyne Configuration Description Method A 419 Trunk, 12 Pin 12 Fiber MPO to 12 Pin 8 Fiber MPO Method C 420 Trunk, 12 Pin 12 Fiber MPO to 12 Pin 8 Fiber MPO



MPO 2mm Breakout Configurations 40G

Pinout Design Fiberdyne Configuration Description Method A 28 MPO - LC, 12 Pin 8 Fiber to 8 LC, 40G, Method A, 2mm Breakout Method A 30 MPO - SC, 12 Pin 8 Fiber to 8 SC, 40G, Method A, 2mm Breakout   556 MPO 12 Fiber to LC 8 Fiber, 2 Fiber Breakout, No Clips Method A 88 Two 12 Pin 8 Fiber MPO to Two Groups of 8 LC, Method A, 2mm Breakout Method A 89 Two 12 Pin 8 Fiber MPO to Two Groups of 8 LC, Method A, 2mm Breakout Method A 90 Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC, Method A, 2mm Breakout Method A 92 Six 12 Pin 8 Fiber MPO to Six Groups of 8 LC, Method A, 2mm Breakout Method A 98 Two 12 Pin 8 Fiber MPO to Two Groups of 8 SC, Method A, 2mm Breakout Method A 99 Six 12 Pin 8 Fiber MPO to Six Groups of 8 LC, Method A, 2mm Breakout Method A 100 Four 12 Pin 8 Fiber MPO to Four Groups of 8 SC, NP-NP, .75dB, Method A, 2mm Breakout Method A 102 Six 12 Pin 8 Fiber MPO to Six Groups of 8 SC, Method A, 2mm Breakout



MPO 900um Breakout Configurations 40G

Pinout Design Fiberdyne Configuration Description Method A 269 Two 12 Pin 8 Fiber MPO to Two Groups of 8 LC, Method A, 900um Breakout Method A 270 Three 12 Pin 8 Fiber MPO to Three Groups of 8 LC, Method A, 900um Breakout Method A 271 Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC, Method A, 900um Breakout Method A 272 Six 12 Pin 8 Fiber MPO to Six Groups of 8 LC, Method A, 900um Breakout Method B 273 Two 12 Pin 8 Fiber MPO to Two Groups of 8 LC, Method B, 900um Breakout Method B 274 Three 12 Pin 8 Fiber MPO to Three Groups of 8 LC, Method B, 900um Breakout Method B 275 Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC, Method B, 900um Breakout Method B 276 Six 12 Pin 8 Fiber MPO to Six Groups of 8 LC, Method B, 900um Breakout



MPO LGX Cassette Configurations 40G

Pinout Design Fiberdyne Configuration Description Method B 193 Two 12 Pin 8 Fiber MPO To Two Groups of 8 LC, Method B Method A 194 Two 12 Pin 8 Fiber MPO To Two Groups of 8 LC, Method A Method B 195 12 Pin 8 Fiber MPO To 8 LC, .75dB, Method B Method A 196 12 Pin 8 Fiber MPO To 8 LC, Method A Method A 197 Three 12 Pin 8 Fiber MPO To Three Groups of 8 LC, Method A Method B 198 Three 12 Pin 8 Fiber MPO To Three Groups of 8 LC, Method B



MPO LGX Cassette Tap Ports Configurations 40G

Pinout Design Fiberdyne Configuration Description Method A 396 MPO-LC Optical Tap & Breakout, 12 Pin 12 Fiber To 8 LC & 8 LC Tap Ports Method B 397 MPO-LC Optical Tap & Breakout, 12 Pin 12 Fiber To 8 LC & 8 LC Tap Ports Method A 477 12 Pin 8 Fiber MPO to 12 Pin 8 Fiber MPO Pass Port & 8 LC Tap Port Method A 478 12 Pin 8 Fiber MPO to 12 Pin 8 Fiber MPO Pass Port & 12 Pin 8 Active MPO Fiber Tap Port Method A 479 12 Pin 8 Fiber MPO to 12 Pin 8 Fiber MPO Pass Port & Two 12 Pin 8 Fiber ( 4 Active Fiber each MPO) Tap Port Method A 480 2 Pin 8 Fiber MPO to 12 Pin 8 Fiber MPO Pass Port & 12 Pin 8 Active MPO Fiber Tap Port, Method A



Conversion Configurations

Pinout Design Fiberdyne Configuration Description Type A - Method A 31 MPO Conversion Cable, Two OM4, 10G, 12 Pin 12 Fiber Type A MPO To Three OM4, 40G, 12 Pin 8 Fiber Method A



Conversion LGX Cassette Configurations

Pinout Design Fiberdyne Configuration Description Two 12 Pin 12 Fiber MPO To Three 12 Pin 8 Fiber MPO 199 10G To 40G MPO Conversion LGX Cassette, Two 12 Pin 12 Fiber MPO To Three 12 Pin 8 Fiber MPO



Conversion Rack Mount Module Configurations

Pinout Design Fiberdyne Configuration Description Four 12 Pin 12 Fiber MPO To Two Groups of Three 12 Pin 8 Fiber MPO 200 10G To 40G MPO Conversion Rack Mount Module, Four 12 Pin 12 Fiber MPO To Two Groups of Three 12 Pin 8 Fiber MPO Six 12 Pin 12 Fiber MPO To Three Groups of Three 12 Pin 8 Fiber MPO 201 10G To 40G MPO Conversion Rack Mount Module, Six 12 Pin 12 Fiber MPO To Three Groups of Three 12 Pin 8 Fiber MPO Eight 12 Pin 12 Fiber MPO To Four Groups of Three 12 Pin 8 Fiber MPO 202 10G To 40G MPO Conversion Rack Mount Module, Eight 12 Pin 12 Fiber MPO To Four Groups of Three 12 Pin 8 Fiber MPO



Distribution Center Configurations 10G

Pinout Design Fiberdyne Configuration Description Rack Mount 209 Rack Mount Distribution Boxes Panels/Faceplates 211 Distribution Panels/Faceplates Rack Mount



Associated Products Category 5E

Pinout Design Fiberdyne Configuration Description RJ45 Bootless 205 Premium Category 5E Stranded Riser Patchcord



Associated Products Category 6

Pinout Design Fiberdyne Configuration Description RJ45 Bootless 206 Premium Category 6 Stranded Riser Patchcord



Extension High Count Trunk

Pinout Design Fiberdyne Configuration Description Method A 464 MPO Extension High Count Trunk
