Planar Lightwave Circuit (PLC) Splitter

    Introduction:
    Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. These are widely used in PON networks to realize optical signal power splitting as a low-cost solution. Fiberdyne Labs Inc. provides a whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.



Technical Data Sheet Technical Data Sheet



    Features:
  •       - Low Insertion Loss
  •       - Low PDL (Polarization Dependent Loss)
  •       - Compact Design
  •       - High Reliability and Stability
  •       - Good channel-to-channel uniformity
  •       - Wide Operating Wavelength:
                     From 1260nm to 1650nm
  •       - Wide Operating Temperature:
                    From -40°C to 85°C

New York

    Applications:
  •       - FTTX Systems
  •       - PON Networks
  •       - CATV Links
  •       - Optical Signal Distribution

    Compliance:
  •       - Telcordia GR-1209-CORE
  •       - Telcordia GR-1221-CORE
  •       - RoHS



Specifications:
Table 1 - 1XN PLC Splitter
Parameters 1 x 2 1 x 4 1 x 8 1 x 16 1 x 32 1 x 64
Operating Wavelength1260 - 1650
Fiber TypeG657A1
Insertion Loss (dB) 3.8 7.0 10.2 13.5 16.5 20.5
Loss Uniformity (dB) 0.4 0.6 0.8 1.2 1.5 2.5
Return Loss (dB) 55 55 55 55 55 55
Polarization Dependent Loss (PDL, dB) 0.2 0.2 0.3 0.3 0.3 0.4
Directivity (dB) 55 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temperature Stability (-40 - 85 °C) (dB) 0.5 0.5 0.5 0.5 0.5 0.5
Operating Temperature -40 - 85 °C
Storage Temperature -40 - 85 °C
Package Dimensions (mm) (LxWxH) 40x4x4 40x4x4 40x4x4 50x7x4 50x7x4 60x12x4
Module Dimensions (mm) (LxWxH) 100x80x10 100x80x10 100x80x10 120x80x18 140x115x18 140x115x18
Mini-Module Dimensions (mm) (LxWxH) 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6 N/A



Note: Specifications subject to change without notice



Specifications:
Table 1 - 2XN PLC Splitter
Parameters 2 x 2 2 x 4 2 x 8 2 x 16 2 x 32
Operating Wavelength 1260 - 1650
Fiber Type G657A1
Insertion Loss (dB) 4.0 7.6 11.0 14.5 17.5
Loss Uniformity (dB) 0.8 1.5 1.5 2.0 2.5
Return Loss (dB) 55 55 55 55 55
Polarization Dependent Loss (PDL, dB) 0.2 0.2 0.3 0.4 0.4
Directivity (dB) 55 55 55 55 55
Wavelength Dependent Loss (dB) 0.3 0.5 0.5 0.5 0.5
Temperature Stability (-40 - 85 °C) (dB) 0.5 0.5 0.5 0.5 0.5
Operating Temperature -40 - 85 °C
Storage Temperature -40 - 85 °C
Package Dimensions (mm) (LxWxH) 40x4x4 40x4x4 50x7x4 50x7x4 60x7x4
Module Dimensions (mm) (LxWxH) 100x80x10 100x80x10 100x80x10 120x80x18 140x115x18
Mini-Module Dimensions (mm) (LxWxH) 60x7x4 60x7x4 60x7x4 60x12x4 80x20x6
Notes:
   1. Specified without connectors
   2. Add an additional 0.2dB loss per connector



Mechanical Dimensions:

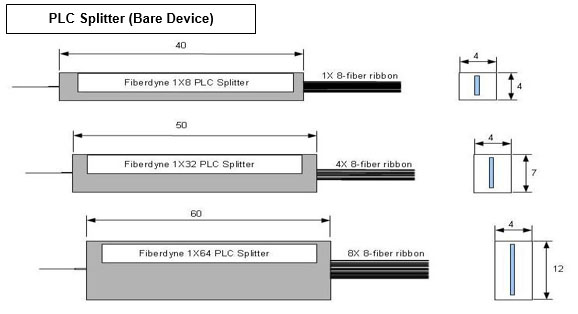

PLC Splitter Bare Device

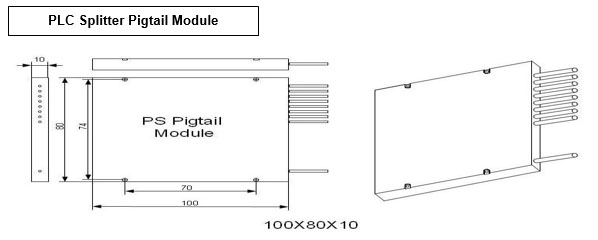

PLC Splitter Pigtail Module 100x80x10

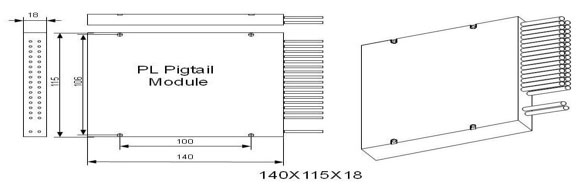

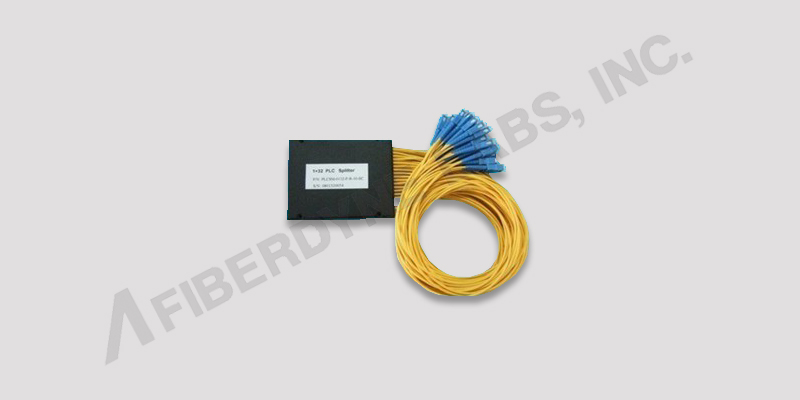

PLC Splitter Pigtail Module 140x115x18

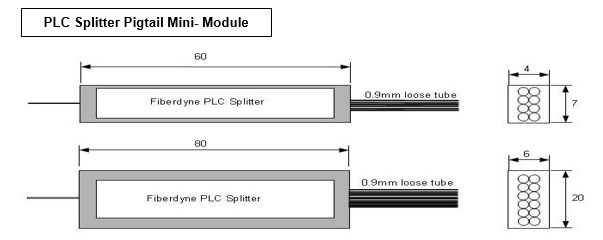

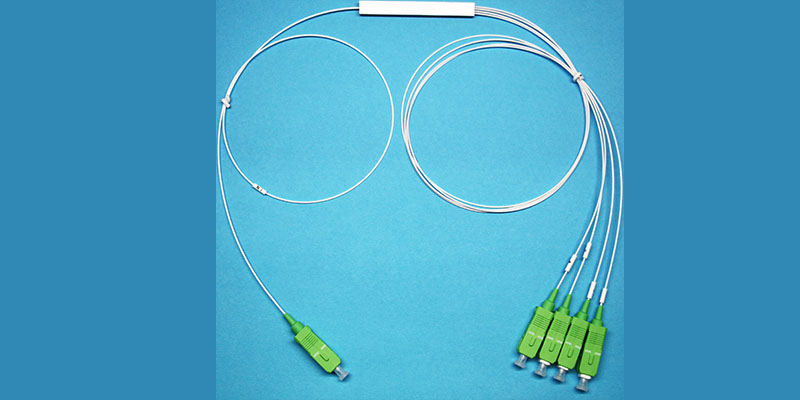

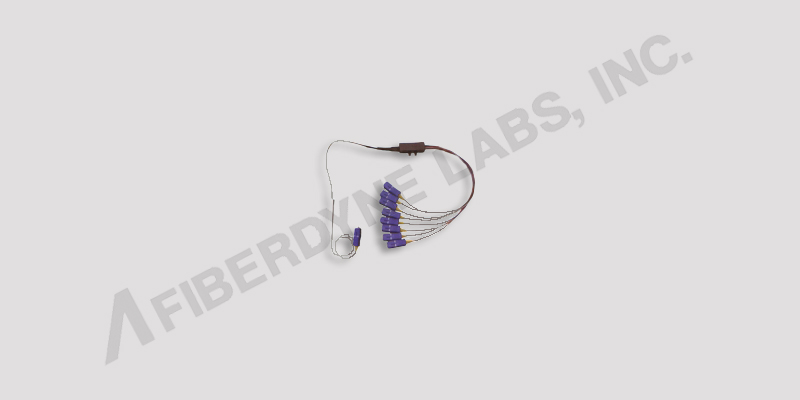

PLC Splitter Pigtail Mini-Module



Ordering Information:
FPD - XXX - X XX X XX - X X
    Port Configuration   Input Fiber Type Input Fiber Length Output Fiber Type Output Fiber Length   Input Connector Output Connector
F=Fiberdyne   102=1x2   B=250µm bare fiber 10=1.0m B=250µm bare fiber 10=1.0m   0=None 0=None
P=PLC Splitter   104=1x4     15=1.5m R=Ribbon Fiber 15=1.5m
Device         25=2.5   25=2.5
    108=1x8
    116=1x16
    132=1x32
    164=1x64
    202=2x2
    204=2x4
    208=2x8
    216=2x16
    232=2x32



PLC Splitter Pigtail Module (including Mini-Module)
FPP - XXX - XX XX XX XX - X X
    Port Configuration   Pigtail Module Type Fiber Type Input Fiber Type Output Fiber Length   Input Connector Output Connector
F=Fiberdyne   102=1x2   PL=140x115x18, plastic 09=0.9mm (900µm) 10=1.0m 10=1.0m   0=None 0=None
P=PLC Splitter   104=1x4   PM=120x80x18mm, plastic, 20=2.0mm 15=1.5m 15=1.5m   1=FC/UPC 1=FC/UPC
P=Pigtail Module       140x115x18mm, plastic 30=3.0mm 25=2.5m 25=2.5m   2=FC/APC 2=FC/APC
    108=1x8   MM=Mini Module   XX=Custom XX=Custom   3=SC/UPC 3=SC/UPC
                  4=SC/APC 4=SC/APC
    116=1x16             7=Custom 7=Custom
                  L=LC/UPC L=LC/UPC
    132=1x32             N=LC/APC N=LC/APC
    164=1x64
    202=2x2
    204=2x4
    208=2x8
    216=2x16
    232=2x32



Notes for above:
   1. Package PS is standard package for 1x2, 1x4, 1x8, 2x4, 2x8.
   2. Package PL is standard package for 1x32, 2x32.
   3. Package PM is standard package for 1x16, 2x16.
   4. Package MM only 1 meter 900µm loose tube available. 1x64 not available in MM package.
   5. Custom length not available in all configurations (requires fusion splicing additional fiber).
