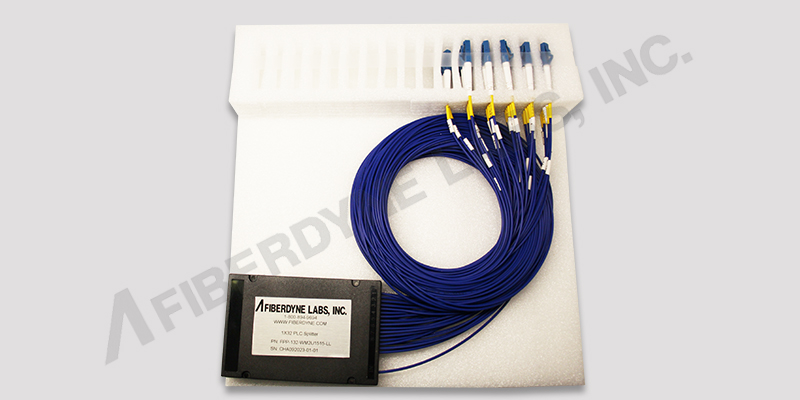

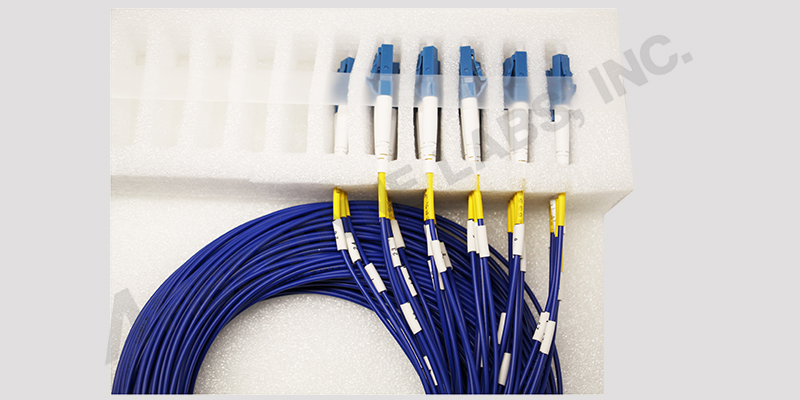

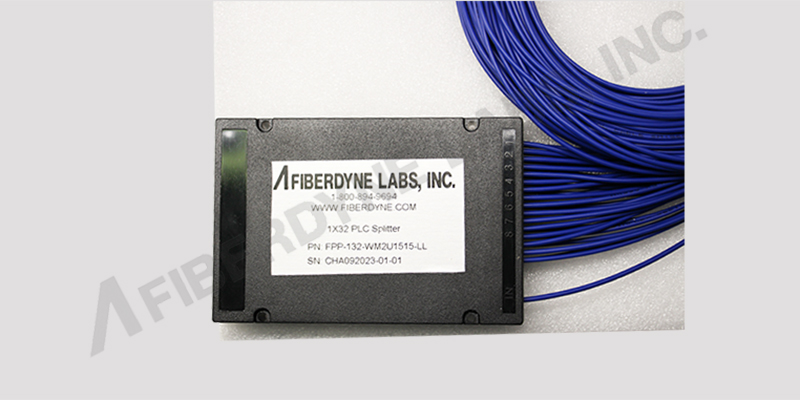

Waterproof Splitter Module
- Introduction
Planar Lightwave Circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity and is widely used in PON networks to realize optical signal power splitting as a low-cost solution. In addition, this pigtail module features an epoxy filled waterproof module and comes with outdoor rated temperature fan-outs. All products meet GR-1209-CORE and GR-1221-CORE requirements.
PDF Version of Web page
Features:
- - Low Insertion loss
- - Low PDL(Polarization Dependent Loss)
- - Compact Design
- - High Reliability and Stability
- - Good channel-to-channel uniformity
- - Wide Operating Wavelength:
- - From 1260nm to 1650nm
- - Wide Operating Temperature:
- - From -40°C to 85°C
- - Waterproof Epoxy Sealed Module
- - Outdoor Rated Temperature Fan-outs
Applications:
- - FTTX Systems
- - PON Networks
- - CATV Links
- - Optical Signal Distribution
Compliance:
- - Telcordia GR-1209-CORE
- - Telcordia GR-1221-CORE
- - RoHS
Specifications:
| Parameters | 1 x 2 | 1 x 4 | 1 x 8 | 1 x 16 | 1 x 32 |
| Operating Wavelength | 1260-1650 | ||||
| Fiber Type | G657B | ||||
| Insertion Loss (dB) | 3.8 | 7.1 | 10.2 | 13.5 | 16.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 |
| Return Loss (dB) | 55 | 55 | 55 | 55 | 55 |
| Polarization Dependant Loss (PDL, dB) | 0.2 | 0.2 | 0.3 | 0.25 | 0.3 |
| Directivity (dB) | 55 | 55 | 55 | 55 | 55 |
| Wavelength (dB) | .05 | .05 | .05 | .05 | .05 |
| Temperature Stability (-40° -85°C) (dB) | .05 | .05 | .05 | .05 | .05 |
| Operating Temperature (°C) | -40 -85 | ||||
| Storage Temperature (°C) | -40 -85 | ||||

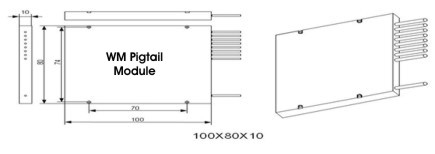

| Module Dimensions (mm) (L x W x H) |
|||||
| Notes:
1) Specified without Connectors 2) Add an additional 0.15dB loss per connector 3) 2.00mm yellow cable legs |
|||||
Ordering Information
| FPP | - | XXX | - | XX | XX | XX | XX | - | X | X |
| Port Configuration | Pigtail Module Type | Fiber Fanout | Input Fiber Length | Output Fiber Length | Input Connector | Output Connector | ||||
| F =Fiberdyne | 102=1x2 | WM=Waterproof Module | 2U=2mm Outdoor Fanout | 10=1.0m | 10=1.0m | 0=None | 0=None | |||
| P=PLC Splitter | 104=1x4 | 15=1.5m | 15=1.5m | 1=FC/UPC | 1=FC/UPC | |||||
| P=Pigtail Module | 108=1x8 | 20=2.0m | 20=2.0m | 2=FC/APC | 2=FC/APC | |||||
| 116=1x16 | XX=Custom (Specify) | XX=Custom (Specify) | 3=SC/UPC | 3=SC/UPC | ||||||
| 132=1x32 | 4=SC/APC | 4=SC/APC | ||||||||
| 7=Custom (Specify) | 7=Custom (Specify) | |||||||||
| L=LC/UPC | L=LC/UPC | |||||||||
| N=LC/APC | N=LC/APC |
Fiberdyne Labs manufactures fiber optic Coupler/Splitters in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
