Fiberdyne Labs, Inc. 1x32 PLC Splitter Module (GPON XGS-PON NG-PON2 FTTx)
Fiberdyne Labs' 1x32 PLC Splitter Module
(GPON XGS-PON NG-PON2 FTTx)
-
Introduction:
Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in FTTx, PON, GPON, XGS-PON, and NG-PON networks to realize optical signal power splitting as a low-cost solution. Fiberdyne Labs, Inc. offers 1x32 PLC Splitters in multiple packaging options. All products meet GR-1209-CORE and GR-1221-CORE requirements. New York
| Specifications | 1x32 |
| Operating Wavelength | 1260-1650 |
| Fiber Type | G.657 A |
| Insertion Loss (dB) | 16.5 |
| Loss Uniformity (dB) | 1.5 |
| Return Loss (dB) | 55 |
| Polarization Dependent Loss (PDL, dB) | 0.3 |
| Directivity (dB) | 55 |
| Wavelength Dependent Loss (dB) | 0.5 |
| Temperature Stability (-40 - 85°C) (dB) | 0.5 |
| Operating Temperature (°C) | -40~85 |
| Storage Temperature (°C) | -40~85 |
Technical Date Sheet
| Product Description | Package Type | Connectors | Part Number |
| 1x32 PLC Splitter Device, 1 Meter Bare Fiber Input, (4) 1 Meter Ribbon Fiber Outputs, 250um |
Steel Tube 50 x 7 x 4 mm |
None | FPD-132-B10R10-00 |
| 1x32 PLC Splitter Device, 1 Meter Bare Fiber Input, 1 Meter Ribbon Bare Fiber Outputs, 250um |
Steel Tube 50 x 7 x 4 mm |
None | FPD-132-B10B10-00 |
| 1x32 PLC Splitter Device, 2.5 Meter Bare Fiber Input, 2.5 Meter Ribbon Bare Fiber Outputs, 250um (Compatible with Commscope® PN: CC8312-000 / OCC1P-132-NNNQNQF for use in Commscope® FOSC Closures) |
Steel Tube 50 x 7 x 4 mm |
None | FPD-132-B25B25-00 |
| 1x32 PLC Splitter Pigtail Module, 80 x 20 x 6mm Mini Module, 1 Meter 900um Loose tube Fiber Input, 1 Meter 900um Loose tube Fiber Outputs |
Mini Module 80 x 20 x 6 mm |
None | FPP-132-MM091010-00 |

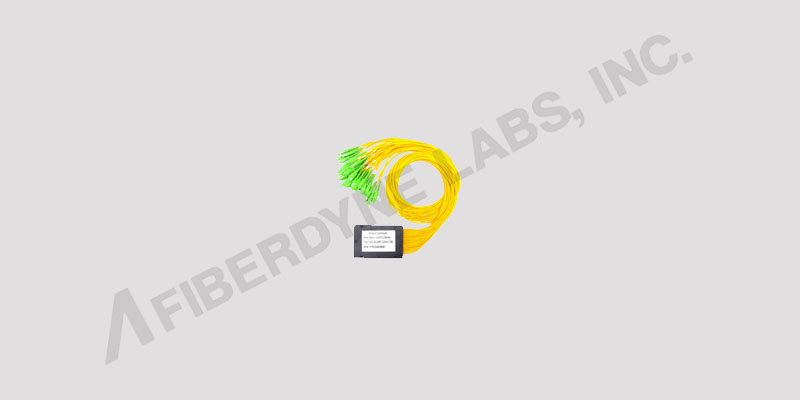

| 1x32 PLC Splitter SC/APC-Pigtail Module, 80 x 20 x 6mm Mini Module, 1 Meter 900um Loose tube Fiber Input, 1 Meter 900um Loose tube Fiber Outputs |
Mini Module 80 x 20 x 6 mm |
SC/APC | FPP-132-MM091010-44 |
| 1x32 PLC Splitter Pigtail Module, 120 x 80 x 18mm ABS Module, 1 Meter 2.0mm Fiber Input, 1 Meter 2.0 mm Fiber Outputs |
ABS 120 x 80 x 18 mm |
SC/APC | FPP-132-PM201010-44 |
| 1x32 PLC Splitter Waterproof Pigtail Module, 120 x 80 x 18mm ABS Silicon Potted Module, 1 Meter 2.0mm Fiber Input, 1 Meter 2.0 mm Fiber Outputs |
ABS 120 x 80 x 18 mm (Silicon Potted) |
SC/APC | FPP-132-WM201010-44 |
| 1x32 PLC Splitter 1U 19/23" Rackmount Box |
1U 19/23" Rackmount Box |
SC/APC Adapters | FP4-71044-00 |
Fiberdyne Labs, Inc. manufactures fiber optic Coupler/Splitters in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
