Fiberdyne Labs, Inc. Coupler/Splitter Singlemode Dual Window Specifications

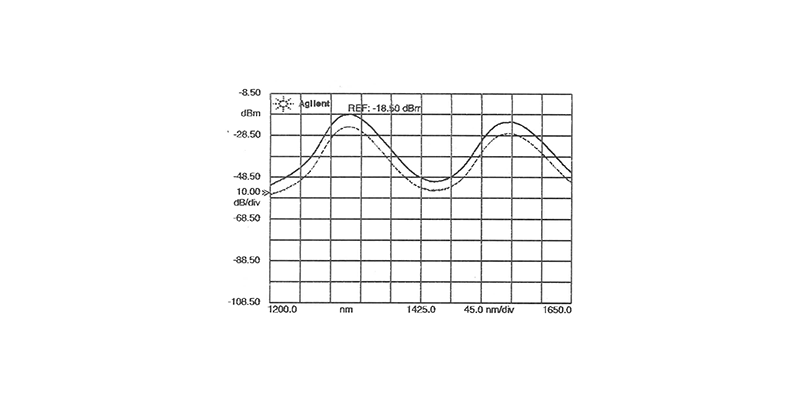

Charts
- PDF Version of web page
- Coupler/Splitter SM Dual Window Part Number Matrix
| Dual Window Coupler Specifications | |||
| Ultra & Premium | Standard | ||
| Center Wavelength 1310, 1550 |
Excess Loss Max. | 0.1dB | 0.3dB |
| Bandwidth +/- 40 nm Specifications Guaranteed +/- 40nm Device Operational 1260nm - 1620nm. | Polarization Dependent Loss Max. |
0.15dB | 0.2dB |
| Directivity 50 dB Min. Operating Temperature -40C to + 85C | |||
| Part Number | Split Ratio | Min. Insertion Loss | Max. Insertion Loss |
| FDC-XXX-050-XXX | 50/50 | 2.92/2.92 | 3.30/3.30 |
| FDC-XXX-045-XXX | 45/55 | 3.37/2.52 | 3.77/2.88 |
| FDC-XXX-040-XXX | 40/60 | 3.87/2.15 | 4.29/2.49 |
| FDC-XXX-035-XXX | 35/65 | 4.44/1.80 | 4.89/2.14 |
| FDC-XXX-030-XXX | 30/70 | 5.09/1.49 | 5.58/1.81 |
| FDC-XXX-025-XXX | 25/75 | 5.85/1.19 | 6.40/1.51 |
| FDC-XXX-020-XXX | 20/80 | 6.78/0.92 | 7.41/1.22 |
| FDC-XXX-015-XXX | 15/85 | 7.96/0.66 | 8.74/0.96 |
| FDC-XXX-010-XXX | 10/90 | 9.59/0.41 | 10.66/0.71 |
| FDC-XXX-005-XXX | 05/95 | 12.22/0.18 | 14.18/0.47 |
| FDC-XXX-001-XXX | 01/99 | 18.24/0.00 | 23.21/0.29 |
| Part Number | Split Ratio | Min. Insertion Loss | Max. Insertion Loss |
| FDC-XXX-150-XXX | 50/50 | 2.68/2.68 | 3.57/3.57 |
| FDC-XXX-145-XXX | 45/55 | 3.10/2.29 | 4.07/3.12 |
| FDC-XXX-140-XXX | 40/60 | 3.57/1.94 | 4.64/2.72 |
| FDC-XXX-135-XXX | 35/65 | 4.09/1.61 | 5.29/2.35 |
| FDC-XXX-130-XXX | 30/70 | 4.69/1.31 | 6.05/2.00 |
| FDC-XXX-125-XXX | 25/75 | 5.38/1.02 | 6.98/1.69 |
| FDC-XXX-120-XXX | 20/80 | 6.20/0.76 | 8.16/1.39 |
| FDC-XXX-115-XXX | 15/85 | 7.45/0.51 | 9.41/1.12 |
| FDC-XXX-110-XXX | 10/90 | 8.86/0.27 | 11.75/0.86 |
| FDC-XXX-105-XXX | 05/95 | 11.55/0.04 | 15.43/0.61 |
| FDC-XXX-101-XXX | 01/99 | 18.24/0.00 | 23.21/0.42 |
| Part Number | Split Ratio | Min. Insertion Loss | Max. Insertion Loss |
| FDC-XXX-250-XXX | 50/50 | 2.68/2.68 | 3.77/3.77 |
| FDC-XXX-245-XXX | 45/55 | 3.10/2.29 | 4.27/3.32 |
| FDC-XXX-240-XXX | 40/60 | 3.57/1.94 | 4.84/2.92 |
| FDC-XXX-235-XXX | 35/65 | 4.09/1.61 | 5.49/2.55 |
| FDC-XXX-230-XXX | 30/70 | 4.69/1.31 | 6.25/2.20 |
| FDC-XXX-225-XXX | 25/75 | 5.38/1.02 | 7.18/1.89 |
| FDC-XXX-220-XXX | 20/80 | 6.20/0.76 | 8.36/1.59 |
| FDC-XXX-215-XXX | 15/85 | 7.45/0.51 | 9.61/1.32 |
| FDC-XXX-210-XXX | 10/90 | 8.86/0.27 | 11.95/1.06 |
| FDC-XXX-205-XXX | 05/95 | 11.55/0.04 | 15.63/0.81 |
| FDC-XXX-201-XXX | 01/99 | 18.24/0.00 | 23.41/0.62 |
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 4th. Digit | Center Wavelength | 0 = 1310 / 1550 nm |
| 5th. Digit | Ports | 1 = 1x2 2 = 2x2 |
| 6th. Digit | Package | 0 = 250µm 0.13" x 2.2"
1 = 900µm 0.13"x 2.2" Y = Y Cable (1x2, 3mm, 1 meter overall length) Heavy Duty (H.D.) Case = 4" x 0.6" x 0.3" 2 = H.D. Case w/3mm Legs 3 = H.D. Case w/2mm Legs 4 = H.D. Case w/Outdoor Rated 2mm Legs B = H.D. Case w/900µm Legs |
| 7th. Digit | Grade | 0 = Ultra 1 = Premium 2 = Standard |
| 8th. & 9th. Digits | Coupling Ratio | Specify First Two Digits (in multiples of 5 only) i.e. 50 = 50/50 60 = 60/40 |
| 10th. Digit | Fiber Type | 0 = Corning SMF 28e+® |
| 11th. Digit | Connector Type | 0 = None 1 = FC 2 = FC/APC 3 = SC 4 = SC/APC 5 = ST 6 = D4 7 = Other (Specify) 8 = Custom Configuration (i.e. SC input to SC/APC outputs) L = LC N = LC/APC |
| 12th. Digit | Overall Length | 1 = 1 Meter (0.5 meter input, 0.5 meter output) 2 = 2 Meters (1 meter input, 1 meter output) |
New York
| Part Number Ordering Example: | FDC-011-155-032 |
| This gives you a Fiberdyne Labs Singlemode Dual Window 1310/1550nm wavelength coupler, 1x2, 900um, Premium, 55/45 Coupling Ratio, Corning SMF 28+®, SC Connectors, 2 Meters overall length (1 Meter input, 1 Meter output) |
|
Coupler/Splitter Singlemode Dual Window Specifications
Most connector types are available SC, SC/APC, ST, FC, FC/APC, etc.
