Coupler/Splitter Modules

Fiberdyne Labs, Inc. Manufactures a complete family of Couplers/Splitters and Couplers/Splitters Modules. Select from 19 Inch Rack Mount Modules, Lucent LGX compatible modules & Reduced Splice Tray modules. Select 1x2 to 1x32 outputs with the wavelengths and insertion loss of your choice and with the optical splits you require.



PDF Version of web page



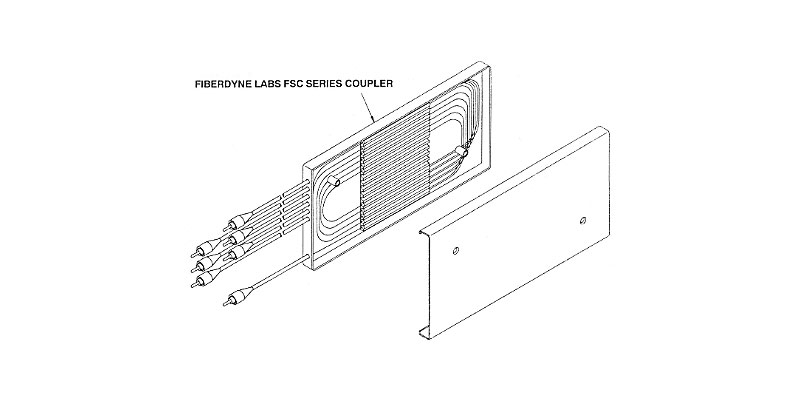

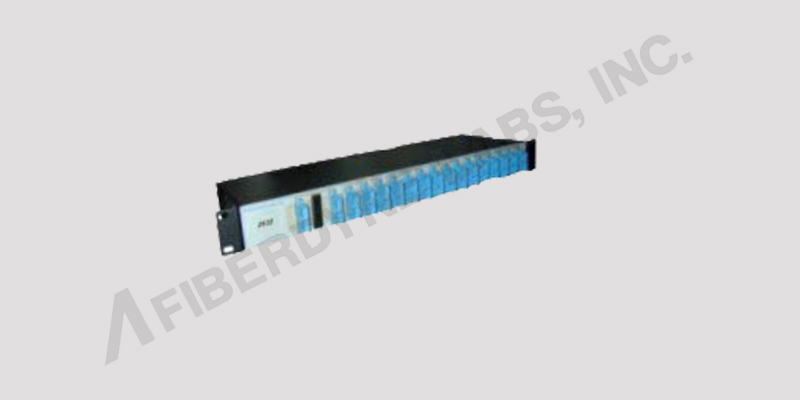

Ultra Coupler Module

Max Insertion Loss
Coupler Module Split	Ultra
1x2	3.3
1x4	6.7
1x8	10.1
1x16	13.5
1x32	16.9
* Coupler Module Loss Table does not include connector loss

• Benefits:
• - Assembled in the USA
• - Fast Delivery
• - Custom Configurations Available
• - Best Industry Specifications
• - Factory Direct Savings

Connector Types:

LC and LC/APC, SC, SC/APC, FC, FC/APC, ST



Features	Specifications
Low PDL	Center Wavelength 1310, 1550
Low Insertion Loss
Excellent Uniformity
High Directivity	Directivity 50 dB Min.
Bi-Directional	Operating Temperature -40C to +85C
	Bandwidth +-40nm
	Excess Loss 0.1dB Max.
	Polarization Dependant Loss Max. 0.15dB



Ordering Information:



Part A

F	X	X	-	X	X	X	X	X	-	X	X
	2	3		4	5	6	7	8		9	10
Fiberdyne Labs, Inc. Coupler Modules



2nd. Digit	Center Wavelength	0 = 1550 nm Singlemode 2 = 1310 nm Singlemode 3 = 1310/1550 Singlemode 7 = 850/1300 Multimode 9 = 850 nm Laser Multimode
3rd. Digit	Ports	1 = 1x2 2 = 1x3 3 = 1x4 4 = 1x5 5 = 1x6 6 = 1x7 7 = 1x8 8 = 1x9 9 = 1x10 A = 1x11 B = 1x12 C = 1x13 D = 1x14 E = 1x15 F = 1x16 G = 1x32 H = 2x2 J = ( 2 ) 1x2 K = 1x18 L = 1x24 M = 2x4 N = (2) 1x3 P = 2x8 R = 2x16 T = 2x32
4th. Digit	Package	0 = LGX/Fiberdyne compatible with input pigtail, output adapters 1 = LGX/Fiberdyne compatible with input adapters, output adapters 2 = LGX/Fiberdyne compatible with input pigtail, output pigtail 3 = Corning FDC compatible with input pigtail, output adapters (Not Available) 4 = Corning FDC compatible with input adapter, output adapter. (Not Available) 5 = Corning FDC compatible with input pigtail, output pigtails. (Not Available) Note: # 3,4,5 Not Compatible with CCH (Corning Connector Housing) 6 = Corning Reduced Fusion Splice Tray compatible with pigtail input, pigtail output. 7 = 19 Inch Rack mount Module 8 = Customer requested special. 9 = Wall Mount Module A = ADC Module (Not Available) B = LGX with Rear Entry C = Corning Eclipse compatible with input adapter, output adapter. D = Splitter/Coupler Tray M = 120 x 80 x 18mm Plastic Case, Pigtails Only S = 100 x 80 x 10mm Plastic Case, Pigtails Only
5th. Digit	Grade	0 = Exact 1 = Ultra 2 = Premium 3 = Standard
6th. Digit	Fiber Type	0 = Corning SMF-28e 1 = Corning Multimode 62.5/125 2 = Corning Multimode 50/125 (SX+ fiber for 850 nm Laser Multimode)
7th. Digit	Connector Type Input	0 = None 1 = FC 2 = FC/APC 3 = SC 4 = SC/APC 5 = ST 7 = Specify L = LC N = LC/APC
8th. Digit	Connector Type Output	0 = None 1 = FC 2 = FC/APC 3 = SC 4 = SC/APC 5 = ST 7 = Specify L = LC N = LC/APC
9th. Digit	Length Input	0 = Adapter 1 = 1 m 2 = 2 m 3 = 3 m 4 = 4 m 5 = 5 m
10th. Digit	Length Output	0 = Adapter 1 = 1 m 2 = 2 m 3 = 3 m 4 = 4 m 5 = 5 m

New York



Ordering Information
Part B

Split Ratio SSS-SSN	Values must add up to 100%
1st. Digit	1st. Split Ratio
2nd. Digit	2nd. Split Ratio
3rd. Digit	3rd. Split Ratio
4th. Digit	4th. Split Ratio
5th. Digit	5th. Split Ratio
nth. Digit	nth. Split Ratio



Example:

F34-73033-12  25,25,25,15,10

Part A of this number (F34-73033-12) gives us a Fiberdyne Labs, Inc. singlemode Dual Wavelength 1310/1550 nm, 1x5, 19 Inch Rack mount module with input pigtails, output pigtails, standard grade coupler using Corning SMF-28e fiber, SC connectors on the input, SC connectors on the output, input length 1 meter, and output length 2 meters.

Part B of this number (25, 25, 25, 15, 10) gives us the split ratio values which must add up to 100%



Coupler/Splitter Specifications



Split Ratio Min	Max Insertion Loss
50/50	3.30/3.30
45/55	3.77/2.88
40/60	4.29/2.49
35/65	4.89/2.14
30/70	5.58/1.81
25/75	6.40/1.51
20/80	7.41/1.22
15/85	8.74/0.96
10/90	10.66/0.71
05/95	14.18/0.47
01/99	23.21/0.29
