5G Wireless Application Fronthaul, Midhaul and Backhaul

5G Wireless Application Fronthaul, Midhaul and Backhaul



Introduction:
    Your direct source for quality optical transceivers anc connectivity solutions.
    Fiberdyne Labs Optical Transceivers are standard compliant modules, which are used in a variety of Ethernet equipment, such as:
    • - Data Centers
    • - 5G Wireless Application Fronthaul
    • - Midhaul and Backhaul
    • - Telecom Networks Application
    • - Metro, DCI and 5G Backhaul Coherent Transmission
    • - Intra Data Center Connectivity

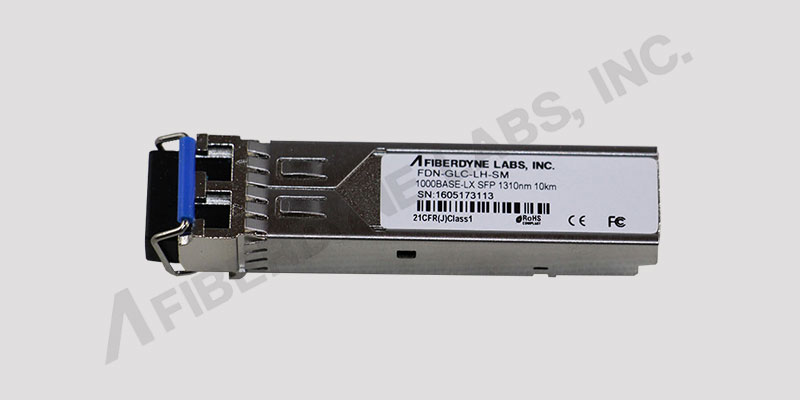

    As the name implies, the SFP modules simply plug into the available equipment ports. If your requirements change, you simply unplug your existing SFP module, and plug-in your new module. Fiberdyne Labs offers a wide variety of SFP modules (i.e. CWDM, DWDM and BiDi) to meet your requirements. New York
    Complete Product Portfolio of 1G, 10G, 25G, 40G, 100G, 200G, 400G and 800G.



Quick Links:
∙ CFP
∙ 16G FC
∙ 32G FC
∙ 25G SFP28
∙ 50G QSFP28 Single Lambda
∙ 200G QSFP56



5G Wireless Application Fronthaul, Midhaul and Backhaul



CFP
  P/N Product Description Data Rate (Gb/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature (degC)
CFP FDN-CFP-100G-LR4CFP LR4100G/112G1296-1309nm LWDM DFBPIN-4.3/-2.54.5/2.9-10.6/-8.84.5/4910km0~70
FDN-CFP-100G-ER4CFP ER4100G/112G1296-1309nm LWDM DFBAPD-2.7/-2.92.9-20.74.51240km0~70
FDN-CFP-100G-ZR4CFP ZR4100G/112G1296-1309nm LWDM DFBAPD-2.7/-2.92.9-20.74.51580km0~70
FDN-CFP2-100G-LR4CFP2 LR4100G/112G1296-1309nm LWDM DFBPIN-4.3/-2.54.5/2.9-10.6/-8.84.5/2.9610km0~70
FDN-CFP2-100G-ER4CFP2 ER4100G/112G1296-1309nm LWDM DFBAPD-2.7/-2.92.9-20.74.5940km0~70
FDN-CFP2-100G-ZR4CFP2 ZR4100G/112G1296-1309nm LWDM DFBAPD-2.7/-2.92.9-20.74.51280km0~70
FDN-CFP4-100G-LR4CFP4 LR4100G/112G1296-1309nm LWDM DFBPIN-2.5/-4.32.9/4.58.82.9610km0~70



16G FC
  P/N Product Description Data Rate (Gb/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature (degC)
16G FC FDL-FC16-SWSFP+SR FC16G850nm VCSELPIN-7.8-0.5-10.501.0100m0~70
FDL-FC16-LWSFP+LR FC16G1310nm DFBPIN-5-0.5-120.51.510km0~70
FDL-FC16-EWSFP+ER FC16G1550nm EMLPIN-13-140.52.540km0~70
FDL-FC16-CXX-10SFP+ ER CWDM16GCWDM EMLPIN-13-140.52.540km0~70
FDL-FC16-CXX-40SFP+ ER DWDM16GDWDM EMLPIN-13-140.52.540km0~70
FDL-FC16-DXX-10SFP+ FC BIDI16G1330nm DFBPIN-32-120.51.510km0~70
FDL-FC16-DXX-30SFP+ FC BIDI16G1270nm DFBPIN-32-120.51.510km0~70



32G FC
  P/N Product Description Data Rate (Gb/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature (degC)
32G FC FDL-FC32-SWSFP28 32G FC SR32G850nm VCSELPIN-6.22.0-10.32.01.0100m0~70
FDL-FC32-LWSFP28 32G FC LR32G1310nm DFBPIN-5.02.0-13.32.01.210km0~70
FDL-FC32-EWSFP28 32G FC ER32G1310nm DMLAPD06-16-31.540km0~70



25G SFP28
  P/N Product Description Data Rate (Gb/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature (degC)
25G SFP28 FDL-SFP28-SRSFP28 SR25G850nm VCSELPIN-8.42.4-10.32.41.0100m0~70
FDL-SFP28-LRSFP28 LR25G1310nm DFBPIN-7.02.0-13.32.01.010km0~70
FDL-SFP28-ERSFP28 ER25G1310nm EMLADP-3.06.0-21.0-4.01.540km0~70
FDL-SFP28-SRISFP28 SR IT25G850nm VCSELPIN-8.42.4-10.32.41.0100m-40~85
FDL-SFP28-LRLISFP28 LR Lite IT25G1310nm DFBPIN-7.02.0-10.52.01.2300m-40~85
FDL-SFP28-LRISFP28 LR IT25G1310nm DFBPIN-7.02.0-13.32.01.210km-40~85
FDL-SFP28-2733-10SFP28LRBIDIIT25G1270/1330nm DFBPIN-7.02.0-13.32.01.010km-40~85
FDL-SFP28-CWISFP28LRCWDMIT25GDFB CWDMPIN-2.06.0-13.32.51.510km-40~85
FDL-SFP28-LWISFP28 LRLWDMIT25GDFB LWDMPIN-3.03.0-15.33.01.510km-40~85
FDL-SFP28-IWISFP28 IRLWDMIT25GEML LWDMAPD-2.06.0-21.0-4.01.820km-40~85
FDL-SFP28-DWISFP28 LR DWDM IT25GEML DWDMPIN-2.06.0-13.3-2.51.510km-40~85
FDL-SFP28-ERISFP28 ER IT25G1310nm EMLAPD-3.06.0-21.0-4.01.840km-40~85
FDL-SFP28-TD-LRSFP28 LRTunable25G48Channel (191.3~196.0THz)APD0.04.0-16.0-0.02.510km-0~70



50G QSFP28 Single Lambda
  P/N Product Description Data Rate (Gb/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature (degC)
50G QSFP28 Single Lambda FDL-QSFP28-50G-LRQSFP28 LR (PAM4)50G1310nm EMLPIN-4.54.2-10.84.23.510km0~70
FDL-QSFP28-50G-ERQSFP28 ER (PAM4)50G1310nm EMLAPD-0.46.6-17.6-3.43.540km0~70
FDL-QSFP28-LRBDQSFP28 LR BIDI (PAM4)50G1310nm EMLPIN-4.54.2-10.8-4.23.510km0~70
FDL-QSFP28-ERBDQSFP28 ER BIDI (PAM4)50G1310nm EMLAPD-7.56.6-17.6-3.43.540km0~70
FDL-QSFP56-SRQSFP56 SR50G850nm VCSELPIN-4.54.0N/A4.01.5100m0~70
FDL-QSFP56-LRQSFP56 LR50G1310nm DFBPIN0.44.2-10.84.21.810km0~70



200G QSFP56
  P/N Product Description Data Rate (Gb/s) TX RX TX_Min (dBm) TX_Max (dBm) RX_Min (dBm) RX_Max (dBm) Power Consumption Reach Temperature (degC)
200G QSFP56 FDL-Q56-200G-SR4QSFP56 SR4200G850nm VCSELPIN-6.54.0-8.44.05.5100m0~70
FDL-Q56-200G-FR4QSFP56 FR4200GEML CWDM4PIN-4.24.7-8.24.75.02km0~70
FDL-Q56-200G-LR4QSFP56 LR4 (hermetic package)200GEML LWDMPIN-3.45.3-9.75.312.010km0~70
FDL-Q56-200G-ER4QSFP56 ER4 (hermetic package)200GEML LWDMAPD0.06.5-15.5-3.012.040km0~70
