Fiberdyne Labs, Inc. 50/125 OM2 Mode Conditioning Assembly, Riser, 3.0mm

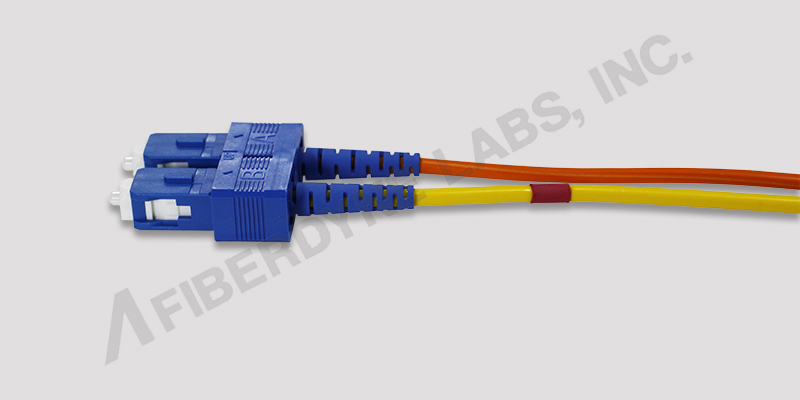

SC Equipment end Mode Conditioning Assembly

LC Equipment end Mode Conditioning Assembly

50/125 OM2 Mode Conditioning Assembly, Riser, 3.0mm

Custom Labeling Available
Other Connector Combinations Available
Boot Options:

- Short Boots
- Bendable Boots
- *45° Boots
- *90° Boots
- Uni-Boots available for LCs

LC & SC connectors available with or without duplex clips/yokes
Plenum cable available upon request
2mm cables available
*Not available on all boots
New York

PDF Version of Web page Technical Data Sheet

Cable & Connector Specifications:
Fiber Type	Singlemode (9/125) 50/125 OM2 Multimode
Insertion Loss (Transmit)	<0.8dB,
Insertion Loss (Receive)	<0.5dB (0.35dB, typical)
Return Loss	>50dB (55 typical)
Radius of Curvature	7 to 25mm
Apex Offset	<50µm
Fiber Height	<100nm
Repeatability	> 500 Cycles
Operating Temperature	-40°C To +75°C
Humidity Range	5% To 95% (Non-Condensing)
Standard Compliance	IEEE Std 802.3

New York

50/125 OM2 Mode Conditioning Assembly, Riser, 3.0mm
SC Equip / SC Plant	F9C21K2GCYYXXX	Specify Length When Ordering
SC Equip / ST Plant	F9C21K2GCY1XXX	Specify Length When Ordering
LC Equip / SC Plant	F9C21K2GCCYXXX	Specify Length When Ordering
LC Equip / ST Plant	F9C21K2GCC1XXX	Specify Length When Ordering
LC Equip / LC Plant	F9C21K2GCCCXXX	Specify Length When Ordering

New York

Fiberdyne Labs manufactures Singlemode & Multimode Assemblies in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
