CWDM Bandpass Skip Filter

Description:
Fiberdyne Labs offers a wide variety of banded Singlemode CWDM skip filters which are typically used in add/drop multiplexing applications. The banded skip filters reduce insertion loss, and simplify upgrades, by passing predefined CWDM channel bands. The CWDM skip filters are available as single filters, with or without connectors, packaged in LGX Modules, packaged in FiberPassHD cassettes, or dual packaged in our innovative Fiberdyne Passive Optical Patchcord (FPOP) cable assemblies.

Features:
- Singlemode Fiber
- High Isolation
- Low Insertion Loss
- Complies with RoHS
- Complies with Telcordia GR-1209, GR-1221
- Convenient selection of packaging
- Most connector styles available

Applications:
- Local Area Networks
- FTTH Networks
- CATV

Specifications:

Parameters		Unit	Specification
Pass Band Reflect Band		nm	See Table 1
Pass Channel	Insertion Loss (Typical) Isolation (Typical)	dB	See Table 1
Reflect Channel	Insertion Loss (Typical) Isolation (Typical)	dB	See Table 1
Return loss/Directivity (Typical)		dB	≥45/50 (50/55)
Polarization Dependent Loss		dB	≤0.1
Insertion Loss Temp. Sensitivity		dB/°C	≤0.005
Power Handling		mW	300
Operating Temperature		°C	-5~70

Ordering Info:
CWDM Skip Filter Part Number Matrix

F	D	C	W	X	X	X	X	X	X	X	X	X	X	X
				5	6	7	8	9	10	11	12	13	14	15

P# Position	Options
1-4	FDCW
5-11	P/N Code in Table 1 First Column
12-15	Options on Table 2

Table 1 for Part Number Positions 5-11

P/N Code	Filter Type	Passband Bandwidth (nm)	Reflect Band Bandwidth (nm)	Passband Isolation (dB)	Reflect Band Isolation (dB)	Special Order Part
04S0270	4-Skip-0 filter (1270-1330)	1260-1337.5	1342.5-1620	>30	>15
04S0290	4-Skip-0 filter (1290-1350)	1283-1357	1260-1277 & 1363-1620	>15	>12	*
04S0410	4-Skip-0 filter (1410-1470)	1403-1477	1260-1397 & 1483-1620	>15	>12
04S0470	4-Skip-0 filter (1470-1530)	1462.5-1537.5	1537.5 1260 & 1542.5-1620	>30	>15
04S0511	4-Skip-0 filter (1511-1571)	1504-1578	1260-1498 & 1584-1620	>25	>15
04S0550	4-Skip-0 filter (1550-1610)	1542.5-1620	1260-1537.5	>30	>15	*
04S0551	4-Skip-0 filter (1551-1611)	1544.5-1620	1260-1537.5	>30	>15	*
05S0270	5-Skip-0 filter (1270-1350)	1260-1357.5	1362.5-1620	>25	>15	*
06S0271	6-Skip-0 filter (1271-1371)	1260-1378.5	1383.5-1620	>30	>15	*
06S0350	6-Skip-0 filter (1350-1450)	1342.5-1457.5	1457.5 1260 & 1462.5-1620	>30	>15	*
08S0270	8-Skip-0 filter (1270-1410)	1260-1417.5	1422.5-1620	>30	>15	*
08S0470	8-Skip-0 filter (1470-1610)	1462.5-1620	1260-1457.5	>30	>15
08S0471	8-Skip-0 filter (1471-1611)	1463.5-1620	1260-1458.5	>15	>13
08S3471	8-Skip-3 filter (1471-1611)	1460-1620	1260-1400	>30	>15
09S0270	9-Skip-0 filter (1270-1430)	1260-1437.8	1444.2-1635	>25	>15	*
10S0270	10-Skip-0 filter (1270-1450)	1260-1457.5	1462.5-1620	>30	>15
10S0271	10-Skip-0 filter (1271-1451)	1260-1458.5	1463.5-1620	>30	>15
10S0290	10-Skip-0 filter (1290-1470)	1282.5-1477.5	1477.5 1260 & 1482.5-1670	>25	>13
10S2271	10-Skip-2 filter (1271-1451)	1260-1458.5	1503.5-1620	>30	>15	*
10S3271	10-Skip-3 filter (1271-1451)	1260-1460	1520-1620	>30	>15
11S0271	11-Skip-0 filter (1271-1471)	1260-1478.5	1483.5-1620	>25	>13
12S0271	12-Skip-0 filter (1271-1491)	1260-1498.5	1503.5-1620	>25	>13
12S0270	12-Skip-0 filter (1270-1490)	1260-1497.5	1502.5-1620	>25	>13	*
16S0270	16-Skip-0 filter (1270-1570)	1260-1577.5	1582.5-1640	>30	>15
*Special Order Part may require minimum order quantity - Contact Sales:

New York

Table 2 for Part Number Positions 12-15 Ordering Info:

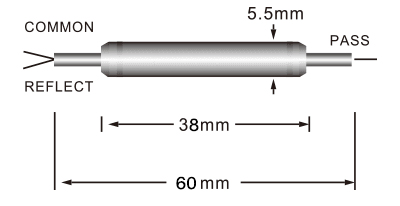

12th Digit	Packaging	1 = Steel Tube H = Heavy Duty
13th Digit	Cable Jacketing Type	1 = 250µm 9 = 900µm 2 = 2mm 3 = 3mm
14th Digit	Overall Length	1 = 1 Meter X = Custom
15th Digit	Connector Type	0 = None 1 = ST/UPC 6 = SC/UPC 7 = FC/UPC A = FC/APC B = SC/APC L = LC/UPC N = LC/APC X = Custom
*Special Order Part may require minimum order quantity - Contact Sales@fiberdyne.com

Additional Information: Coarse Wavelength Division Multiplexing (CWDM) "Grid"
Table of Commonly used CWDM Wavelengths

Center Wavelengths *	Cisco "Colors"	Wavelength "Codes" **
1270/1271	Gray	270/271
1290/1291	Gray	290/291
1310/1311	Gray	310/311
1330/1331	Violet	330/331
1350/1351	Blue	350/351
1370/1371	Green	370/371
1390/1391	Yellow	390/391
1410/1411	Orange	410/411
1430/1431	Red	430/431
1450/1451	Brown	450/451
1470/1471	Gray	470/471
1490/1491	Violet	490/491
1510/1511	Blue	510/511
1530/1531	Green	530/531
1550/1551	Yellow	550/551
1570/1571	Orange	570/571
1590/1591	Red	590/591
1610/1611	Brown	610/611
