Configuration 90, Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC, Method A, 2MM Breakout, 40G, Assemblies



Back to 40G Assemblies Page



View PDF Version

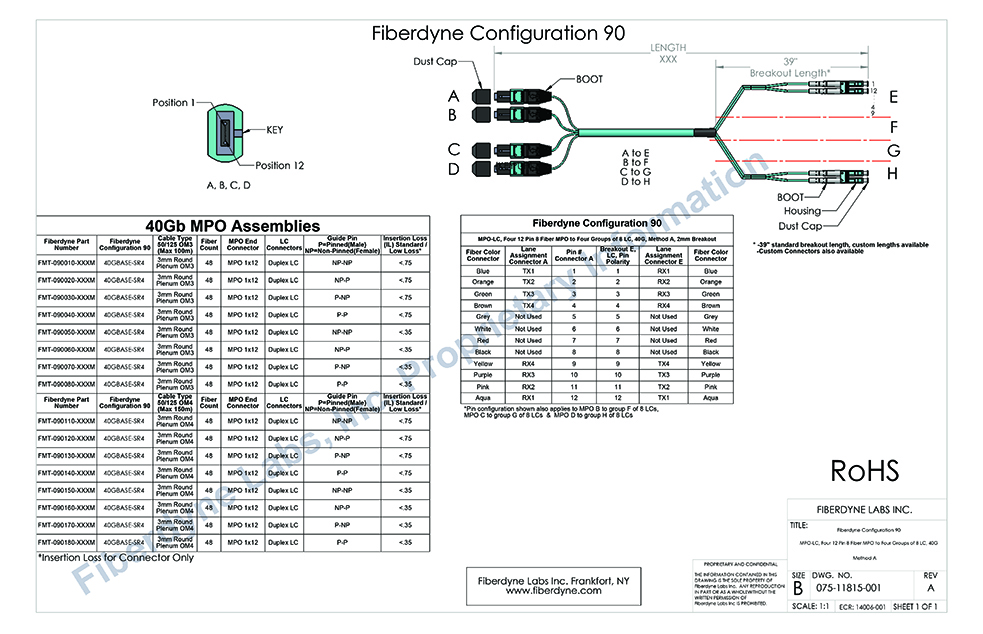

Note: Configurations illustrated below indicate an alignment pin option of No Pin to No Pin (NP-NP).
If other alignment pinning is required, see part number matrix in the drawing.
Prices are the same regardless of pinning.



OM3 3.0 Round Plenum 40G Cable Assemblies
Fiberdyne
Part Number		 Description Length Buy
FMT-090010-001M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 1 Meter N / A
FMT-090010-002M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 2 Meter Call to Order
FMT-090010-003M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 3 Meter Call to Order
FMT-090010-005M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 5 Meter Call to Order
FMT-090010-007M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 7 Meter Call to Order
FMT-090010-010M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 10 Meter Call to Order
FMT-090010-015M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 15 Meter Call to Order
FMT-090010-030M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 30 Meter Call to Order
FMT-090010-050M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .75dB, Method A, 2MM Breakout, OM3 Plenum		 50 Meter Call to Order
New York



OM4 3.0 Round Plenum 40G Cable Assemblies
Fiberdyne
Part Number		 Description Length Buy
FMT-090150-001M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 1 Meter N / A
FMT-090150-002M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 2 Meter Call to Order
FMT-090150-003M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 3 Meter Call to Order
FMT-090150-005M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 5 Meter Call to Order
FMT-090150-007M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 7 Meter Call to Order
FMT-090150-010M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 10 Meter Call to Order
FMT-090150-015M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 15 Meter Call to Order
FMT-090150-030M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 30 Meter Call to Order
FMT-090150-050M Configuration 90, 40G,
Four 12 Pin 8 Fiber MPO to Four Groups of 8 LC,
NP-NP, .35dB, Method A, 2MM Breakout, OM4 Plenum		 50 Meter Call to Order
New York

Fiberdyne Labs manufactures MPOs in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
