Fiberdyne 96 Port Rack Mount with Splicing and Pigtails



Introduction:

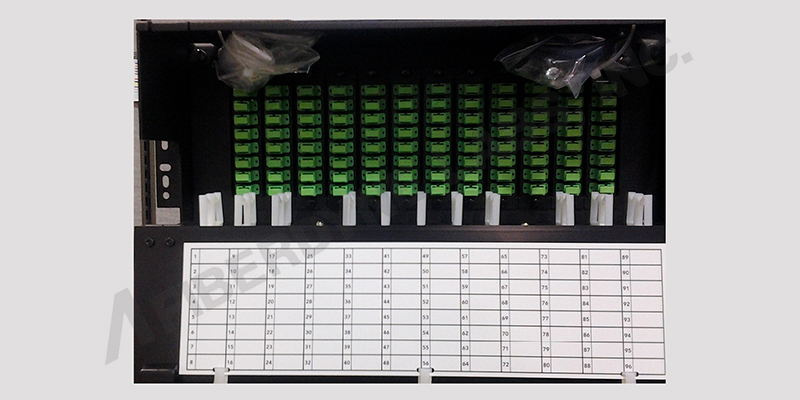

Fiberdynes 4U High 96 Port Termination Box comes in Singlemode or Multimode with (1) 96 Fiber Cable.



Features:

• - Cable Clamp
• - Reversible Mounting Brackets for 19" or 23" Rack
• - Fits Standard Mounting Rails
• - Fiber Ports accessible from front or back

New York



Specifications:
Technical Date Sheet



Isometric View: Fiber Distribution Center (4U/72 Port)
NOTE: 4U High box is also used for 72, 144 & 288 Termination Boxes
Termination Box Part Number Build Matrix



Singlemode SC/UPC SM 900um-Pigtail

Part Number Description Buy FB425A161303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (12) FPA8SCU, Fiberdyne SC/UPC Panel,      Pre-loaded with 8 Simplex SM Adapters (1) F9GE1A1GC6003M-900 96 Fiber SM Riser      SC/UPC Pigtail, 3 Meters (1) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



SC/APC SM 900um-Pigtail

Part Number Description Buy FB425A1B1303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (12) FPA8SCA, Fiberdyne SC/APC Panel,      Pre-loaded with 8 Simplex SM Adapters (1) F9GE1A1GCB003M-900 96 Fiber SM Riser      SC/APC Pigtail, 3 Meters (1) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



FC/UPC SM 900um-Pigtail

Part Number Description Buy FB425A171303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (12) FPA8FCU, Fiberdyne FC/UPC Panel,      Pre-loaded with 8 Simplex SM Adapters (1) F9GE1A1GC7003M-900 96 Fiber SM Riser      FC/UPC Pigtail, 3 Meters (1) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



FC/APC SM 900um-Pigtail

Part Number Description Buy FB425A1A1303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (12) FPA8FCA, Fiberdyne FC/APC Panel,      Pre-loaded with 8 Simplex SM Adapters (1) F9GE1A1GCA003M-900 96 Fiber SM Riser      FC/APC Pigtail, 3 Meters (1) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



ST/UPC SM 900um-Pigtail

Part Number Description Buy FB425A111303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (12) FPA8STU, Fiberdyne ST/UPC Panel,      Pre-loaded with 8 Simplex SM Adapters (1) F9GE1A1GC1003M-900 96 Fiber SM Riser      ST/UPC Pigtail, 3 Meters (1) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



LC/UPC SM 900um-Pigtail

Part Number Description Buy FB425A1C1303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (8) FPA12LCS, Fiberdyne LC/UPC Panel,      Pre-loaded with 6 Duplex SM Adapters (1) F9GE1A1GCL003M-900 96 Fiber SM Riser      LC/UPC Pigtail, 3 Meters (4) FP2XX, Blank Panel (1) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



LC/APC SM 900um-Pigtail

Part Number Description Buy FB425A1N1303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (8) FPA12LCA, Fiberdyne LC/APC Panel,      Pre-loaded with 6 Duplex SM Adapters (1) F9GE1A1GCN003M-900 96 Fiber SM Riser      LC/APC Pigtail, 3 Meters (4) FP2XX, Blank Panel (1) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



Multimode SC Multimode 62.5/125 900um-Pigtail

Part Number Description Buy FB425B261303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (12) FPA8SCM, Fiberdyne SC Panel,      Pre-loaded with 8 Simplex MM Adapters (2) F9GC1B2GC6003M-900 48 Fiber Multimode Riser      SC Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



ST Multimode 62.5/125 900um-Pigtail

Part Number Description Buy FB425B211303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (12) FPA8STM, Fiberdyne ST Panel,      Pre-loaded with 8 Simplex MM Adapters (2) F9GC1B2GC1003M-900 48 Fiber Multimode Riser      ST Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order



LC Multimode 62.5/125 900um-Pigtail

Part Number Description Buy FB425B2C1303M (1) RTP-096, Fiberdyne 96 Port Rack      Accepts 12 Panels (8) FPA12LCM, Fiberdyne LC Panel,      Pre-loaded with 6 Duplex MM Adapters (2) F9GE1B2GCL003M-900 48 Fiber Multimode Riser      LC Pigtail, 3 Meters (4) FP2XX, Blank Panel (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (8) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray Call to Order
