Fiberdyne Labs, Inc. 72 Port Rack Mount 4U High Termination Box



Introduction:

Fiberdynes 72-Port Termination Box is available in Singlemode or Multimode. Holds up to 12 Panels. Pre-loaded with 6 Simplex SM adapters. Termination Box is accessible from both the front or back.



Features:

• - Cable Retainer
• - Removeable Mid-Panel
• - Reversible Mounting Brackets for 19" or 23" Rack
• - Fits Standard Mounting Rails

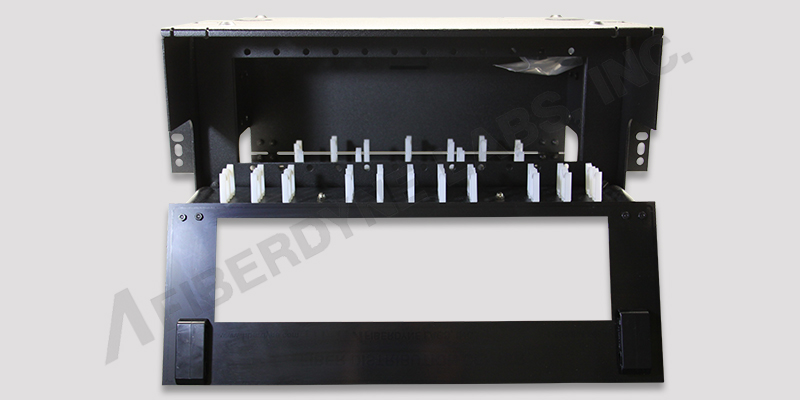

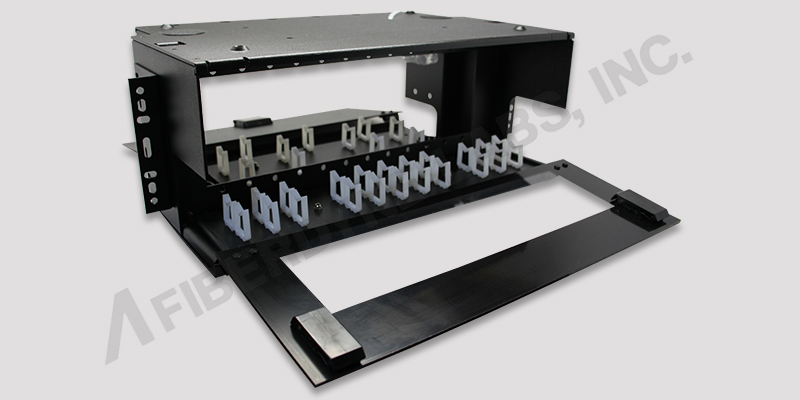

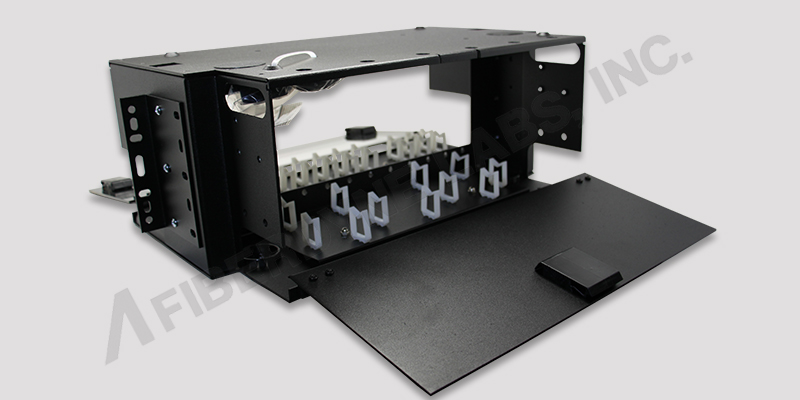

• - Fiber Ports accessible from front or back



Specifications:
Technical Date Sheet



Isometric View: Fiber Distribution Center (4U/72 Port)
NOTE: 4U High box is also used for 96, 144 & 288 Termination Boxes
Termination Box Part Number Build Matrix



With SC/UPC SM Adapters

Part Number Description Buy FB424A1600000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (12) FPA6SCU, Fiberdyne SC/UPC Panel,      Pre-Loaded with 6 Simplex SM Adapters (1) UCC-001, Clamp Kit Call to Order



With SC/APC SM Adapters

Part Number Description Buy FB424A1B00000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (12) FPA6SCA, Fiberdyne SC/APC Panel,      Pre-Loaded with 6 Simplex SM Adapters (1) UCC-001, Clamp Kit Call to Order



With FC/UPC SM Adapters

Part Number Description Buy FB424A1700000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (12) FPA6FCU, Fiberdyne FC/UPC Panel,      Pre-Loaded with 6 Simplex SM Adapters (1) UCC-001, Clamp Kit Call to Order



With FC/APC SM Adapters

Part Number Description Buy FB424A1A00000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (12) FPA6FCA, Fiberdyne FC/APC Panel,      Pre-Loaded with 6 Simplex SM Adapters (1) UCC-001, Clamp Kit Call to Order



With ST/UPC SM Adapters

Part Number Description Buy FB424A1100000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (12) FPA6STU, Fiberdyne ST/UPC Panel,      Pre-Loaded with 6 Simplex SM Adapters (1) UCC-001, Clamp Kit Call to Order



With LC/UPC SM Adapters

Part Number Description Buy FB424A1C00000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (6) FPA12LCS, Fiberdyne LC/UPC Panel,      Pre-Loaded with 6 Duplex SM Adapters (6) FP2XX, Blank Panel (1) UCC-001, Clamp Kit Call to Order



With LC/APC SM Adapters

Part Number Description Buy FB424A1N00000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (6) FPA12LCA, Fiberdyne LC/APC Panel,      Pre-Loaded with 6 Duplex SM Adapters (6) FP2XX, Blank Panel (1) UCC-001, Clamp Kit Call to Order



With MTRJ SM Adapters

Part Number Description Buy FB424A1M00000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (6) FPA12MJS, Fiberdyne MTRJ Panel,      Pre-Loaded with 6 Duplex SM Adapters (6) FP2XX, Blank Panel (1) UCC-001, Clamp Kit Call to Order



With SC MM 10G Adapters

Part Number Description Buy FB424Q1600000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (12) FPA6SCQ, Fiberdyne SC Panel,      Pre-Loaded with 6 Simplex MM Aqua Adapters (1) UCC-001, Clamp Kit Call to Order



With LC MM 10G Adapters

Part Number Description Buy FB424Q1C00000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (6) FPA12LCQ, Fiberdyne LC Panel,      Pre-Loaded with 6 Duplex MM Aqua Adapters (6) FP2XX, Blank Panel (1) UCC-001, Clamp Kit Call to Order



With SC MM Adapters

Part Number Description Buy FB424B2600000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (12) FPA6SCM, Fiberdyne SC Panel,      Pre-Loaded with 6 Simplex MM Adapters (1) UCC-001, Clamp Kit Call to Order



With ST MM Adapters

Part Number Description Buy FB424B2100000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (12) FPA6STM, Fiberdyne ST Panel,      Pre-Loaded with 6 Simplex MM Adapters (1) UCC-001, Clamp Kit Call to Order



With LC MM Adapters

Part Number Description Buy FB424B2C00000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (6) FPA12LCM, Fiberdyne LC Panel,      Pre-Loaded with 6 Duplex MM Adapters (6) FP2XX, Blank Panel (1) UCC-001, Clamp Kit Call to Order



With MTRJ MM Adapters

Part Number Description Buy FB424B2M00000 (1) RTP-072, Fiberdyne 72 Port Rack,      Accepts 12 Panels (6) FPA12MJM, Fiberdyne MTRJ Panel,      Pre-Loaded with 6 Duplex MM Adapters (6) FP2XX, Blank Panel (1) UCC-001, Clamp Kit Call to Order
