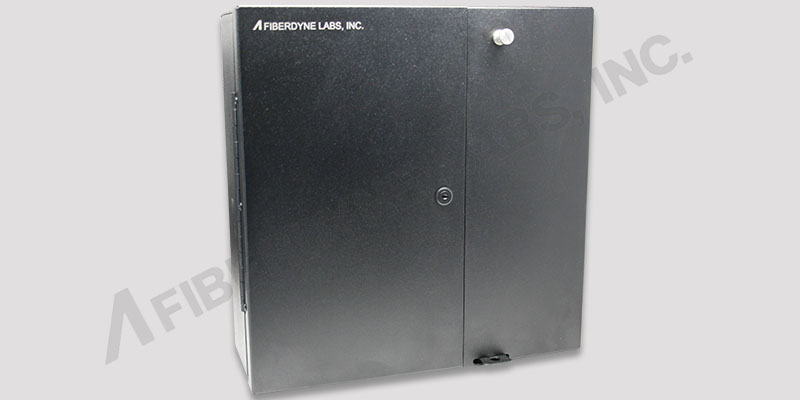

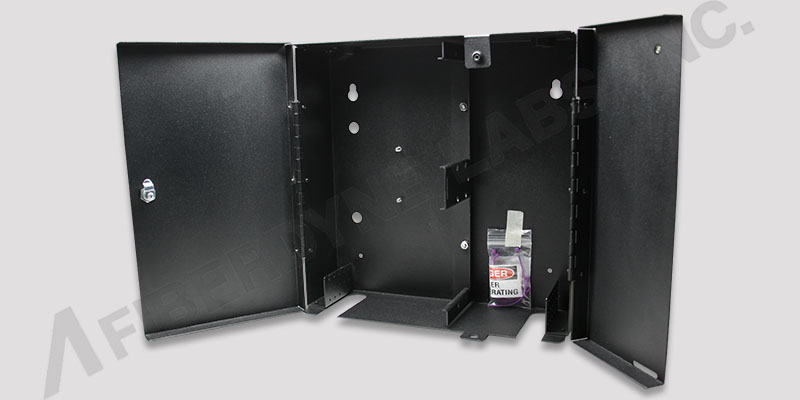

12 Port Wallmount Termination Box (Empty)



Introduction:

Fiberdyne Labs, Inc. provides fiber management solutions for your cabling and hardware needs. The Wallmount Termination Boxes mount easily to most surfaces. Use these boxes in small utility closets or remote locations. Call your Fiberdyne sales representative today for a quotation and specific System Solution Product information.



Features:

• - Mid-panel holds up to 4 LGX style connector panels, singlemode or multimode
• - Connector panels feature 6, 8, 12 or 24 adapters: SC, SC/APC, LC, LC/APC, FC, FC/APC, ST, MTRJ
• - Accepts LGX passive modules and/or LGX splice modules

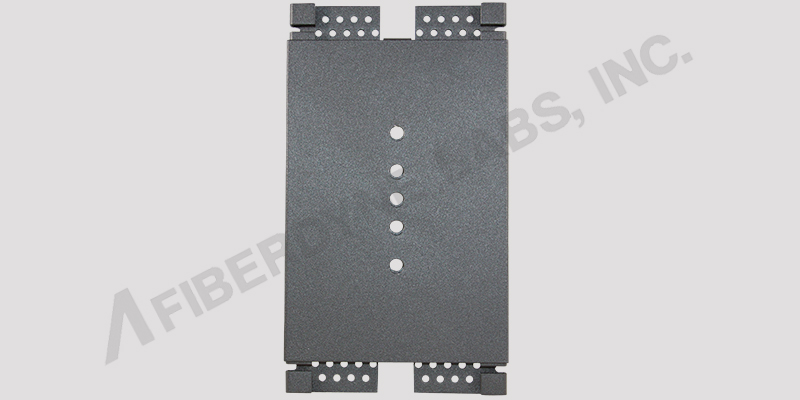

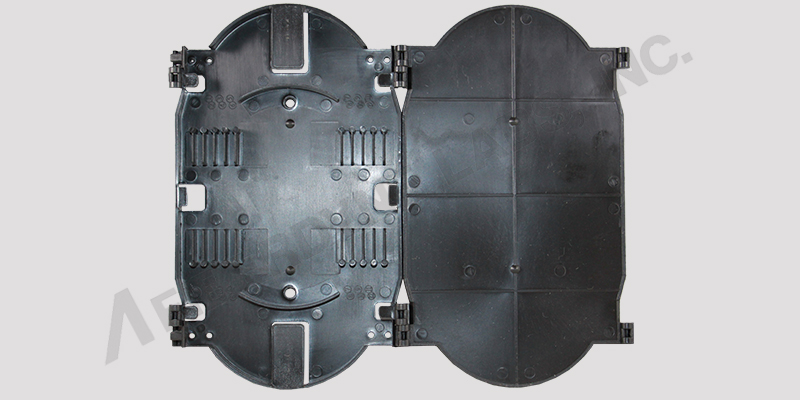

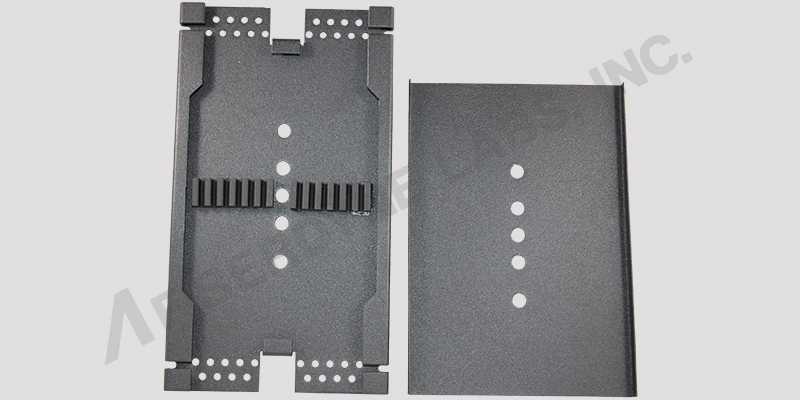

• - Optional 12 position splice trays: metal FST-127 or plastic 12PTSPLTR
• - Fiber management rings included
• - Keylock for main door (on left side)
• - Padlock hasp and thumbscrew closure for small door (on right side)
• - Heavy duty metal, 3.70 lbs unloaded
• - 12”h x 12”w x 4”d



Specifications:

Technical Data Sheet

Technical Drawing

Termination Box Part Number Build Matrix



With SC/UPC Connectors

Part Number Description Buy FB411A1600000 (1) WMB-12, Fiberdyne 12 Port Wall Mount Termination Box (2) FPA6SCU, Fiberdyne SC/UPC Panel, Pre-Loaded with 6 Simplex SM Adapters Call to Order



With SC/APC Connectors

Part Number Description Buy FB411A1B00000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (2)FPA6SCA, Fiberdyne SC/APC Panel, Pre-Loaded with 6 Simplex SM Adapters Call to Order



With FC/UPC Connectors

Part Number Description Buy FB411A1700000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (2)FPA6FCU, Fiberdyne FC/UPC Panel, Pre-Loaded with 6 Simplex SM Adapters Call to Order



With FC/APC Connectors

Part Number Description Buy FB411A1A00000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (2)FPA6FCA, Fiberdyne FC/APC Panel, Pre-Loaded with 6 Simplex SM Adapters Call to Order



With ST/UPC Connectors

Part Number Description Buy FB411A1100000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (2)FPA6STU, Fiberdyne ST/UPC Panel, Pre-Loaded with 6 Simplex SM Adapters Call to Order



With LC/UPC Connectors

Part Number Description Buy FB411A1C00000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (1)FPA12LCS, Fiberdyne LC/UPC Panel, Pre-Loaded with 6 Duplex SM Adapters Call to Order



With LC/APC Connectors

Part Number Description Buy FB411A1F00000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (1)FPA12LCA, Fiberdyne LC/APC Panel, Pre-Loaded with 6 Duplex SM Adapters Call to Order



With MTRJ Connectors

Part Number Description Buy FB411A1M00000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (1)FPA12MJS, Fiberdyne MTRJ Panel, Pre-Loaded with 6 Duplex SM Adapters Call to Order



With SC Connectors

Part Number Description Buy FB411Q1600000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (2)FPA6SCM, Fiberdyne SC Panel, Pre-Loaded with 6 Simplex Aqua MM Adapters Call to Order



With LC Connectors

FB411Q1C00000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (1)FPA12LCQ, Fiberdyne LC Panel, Pre-Loaded with 6 Duplex Aqua MM Adapters Call to Order



With SC Connectors

Part Number Description Buy FB411B2600000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (2)FPA6SCM, Fiberdyne SC Panel, Pre-Loaded with 6 Simplex MM Adapters Call to Order



With ST Connectors

Part Number Description Buy FB411B2100000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (2)FPA6STM, Fiberdyne ST Panel, Pre-Loaded with 6 Simplex MM Adapters Call to Order



With LC Connectors

Part Number Description Buy FB411B2C00000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (1)FPA12LCM, Fiberdyne LC Panel, Pre-Loaded with 6 Duplex MM Adapters Call to Order



With MTRJ Connectors

Part Number Description Buy FB411B2M00000 (1) WMB-12, Fiberdyne 12 Port Wall Mount, Accepts 2 Panels (1)FPA12MJM, Fiberdyne MTRJ Panel, Pre-Loaded with 6 Duplex MM Adapters Call to Order
