Fiberdyne Labs 144 Port Rack Mount Termination Box with Splicing & Pigtails

144 Port Rack Mount Termination Box with Splicing and Pigtails

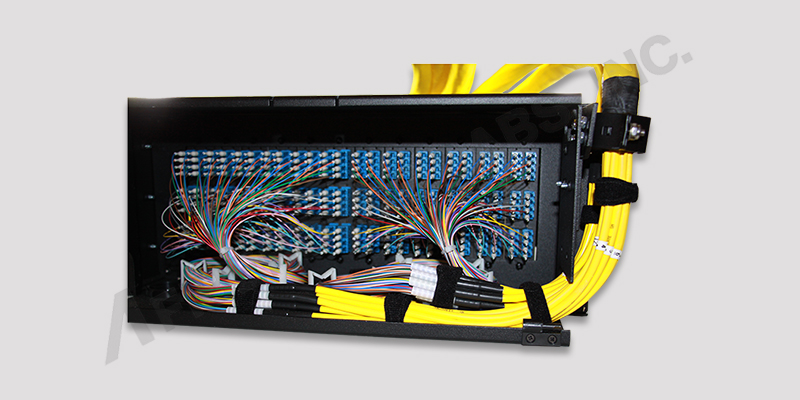

Back of Pre-Assembled 144 Port Rack Mount Termination Box with Splicing & Pigtails

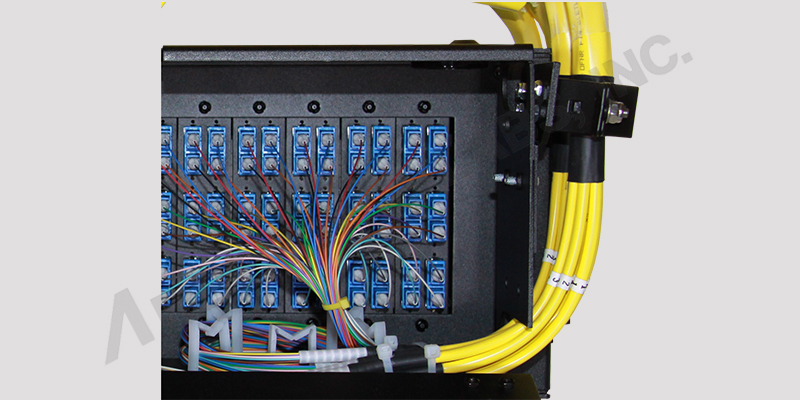

Close-up of Back of Pre-Assembled 144 Port Rack Mount Termination Box with Splicing & Pigtails

144 Port Rack Mount Termination Box with Splicing and Pigtails

Introduction:

Fiberdyne Labs, Inc. 144 Port Termination Box comes in Singlemode or Multimode with (1) 144 Fiber connectorized cable, (3 meters each). (12) 12 port panels, cable management rings, 4U rackmount splice housing & (12) twelve position splice trays.

Features:

- Cable Retainer/Clamp
- Reversible Mounting Brackets to fit 19" or 23" rack
- Fits Standard Rack Mount Rails
- Fiber Ports accessible from front or back

New York

Specifications:

Technical Data Sheet

Technical Drawing: Fiber Distribution Center (4U/72 Port)

Termination Box Part Number Build Matrix P/N Build Matrix

NOTE: 4U High box is also used for 72, 96, and 288 port Termination Boxes

SC/UPC SM 900um-Pigtail

Part Number	Description	Buy
FB426A1Y1303M	(1) RTP-144, Fiberdyne 144 Port Rack, Accepts 12 Panels (12) FPA12SCU, Fiberdyne SC/UPC Panel, Pre-Loaded with 6 Duplex SM Adapters (1) F9GF1A1GC6003M-900, 144 Fiber SM Riser SC/UPC Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (12) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray	Call to Order

SC/APC SM 900um-Pigtail

Part Number	Description	Buy
FB426A1W1303M	(1) RTP-144, Fiberdyne 144 Port Rack, Accepts 12 Panels (12) FPA12SCA, Fiberdyne SC/APC Panel, Pre-Loaded with 6 Duplex SM Adapters (1) F9GF1A1GCB003M-900, 144 Fiber SM Riser SC/APC Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (12) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray	Call to Order

ST/UPC SM 900um-Pigtail

Part Number	Description	Buy
FB426A1S1303M	(1) RTP-144, Fiberdyne 144 Port Rack, Accepts 12 Panels (12) FPA12STU, Fiberdyne ST/UPC Panel, Pre-Loaded with 6 Duplex SM Adapters (1) F9GF1A1GC1003M-900, 144 Fiber SM Riser ST/UPC Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (12) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray	Call to Order

LC/UPC SM 900um-Pigtail

Part Number	Description	Buy
FB426A1C1303M	(1) RTP-144, Fiberdyne 144 Port Rack, Accepts 12 Panels (12) FPA12LCS, Fiberdyne LC/UPC Panel, Pre-Loaded with 6 Duplex SM Adapters (1) F9GF1A1GCL003M-900, 144 Fiber SM Riser LC/UPC Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (12) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray	Call to Order

LC/APC SM 900um-Pigtail

Part Number	Description	Buy
FB426A1F1303M	(1) RTP-144, Fiberdyne 144 Port Rack, Accepts 12 Panels (12) FPA12LCA, Fiberdyne LC/APC Panel, Pre-Loaded with 6 Duplex SM Adapters (1) F9GF1A1GCN003M-900, 144 Fiber SM Riser LC/APC Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (12) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray	Call to Order

SC MM OM3 10G 900um-Pigtail

Part Number	Description	Buy
FB426Q1Y1303M	(1) RTP-144, Fiberdyne 144 Port Rack, Accepts 12 Panels (12) FPA12SCM, Fiberdyne SC Panel, Pre-Loaded with 6 Duplex MM Adapters (1) F9GF1Q1GC6003M-900, 144 Fiber OM3 10G MM Riser SC Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (12) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray	Call to Order

LC MM OM3 10G 900um-Pigtail

Part Number	Description	Buy
FB426Q1C1303M	(1) RTP-144, Fiberdyne 144 Port Rack, Accepts 12 Panels (12) FPA12LCM, Fiberdyne LC Panel, Pre-Loaded with 6 Duplex MM Adapters (1) F9GF1Q1GCL003M-900, 144 Fiber OM3 10G MM Riser LC Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (12) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray	Call to Order

ST MM 62.5/125 900um-Pigtail

Part Number	Description	Buy
FB426B2S1303M	(1) RTP-144, Fiberdyne 144 Port Rack, Accepts 12 Panels (12) FPA12STM, Fiberdyne ST Panel, Pre-Loaded with 6 Duplex MM Adapters 62.5/125 (1) F9GF1B1GC1003M-900, 144 Fiber MM Riser ST Pigtail, 3 Meters (2) UCC-001, Clamp Kit (1) RSH-144, Fiberdyne 144 Capacity Splice Housing (12) FST-12, Fiberdyne 12 Capacity Fusion Splice Tray	Call to Order

New York

Fiberdyne Labs manufactures Wallmount/Rackmount Termination Boxes in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
