Metro Cisco® compatible CWDM System
- Description:
Fiberdyne Labs is pleased to offer an advanced technology product line equivalent to the Cisco® WDM series of CWDM passive devices. The Fiberdyne product offerings are available in two industry standard form factors. Our LGX series provides a functional equivalent to the Cisco® CWDM passive modules, packaged in the popular and compact LGX module footprint. Our Cisco® compatible module series are available packaged in a Cisco® compatible footprint.
Both the LGX series modules and the Cisco® compatible modules are 100% functionally equivalent to Cisco®.
Our complete product series consists of rack mount 19" chassis variants available for both the LGX and Cisco® compatible for factors, 4 and 8 channel mux/demux modules, optical add/drop modules, 1310/1550 WDM "Y" splitter cable, fiber jumper cable assemblies and Cisco® compatible SFPs.
PDF Version of Web page
- Features and Benefits:
- - Up to 80% cost savings vs Cisco®
- - One year product warranty vs Cisco® 90 day warranty
- - Wide operating temperature specifications: -20~75°C
- - Available in smaller LGX form factor
- - Available in any customer designed form factor
- - Pass through port can be added to mux/demux at time of purchase
- - Optical variable attenuator can be added to mux/demux
- - 1310/1550 WDM splitter can be customized wit LC, LC/APC, SC, SC/APC, ST, MU, FC, etc.
- - Modules can be customized to include 1310 ports and optics
- - Mudules are protocol independent
- - Low insertion loss
- - Monitor ports are all mux/demux and OADMs
- - 1300-nm transparancy
- - External WDM (Y-cable) splitter-cable for adding 1300-nm
- - Compatible with Gig, 10GbE, 40GbE, 100GbE, DWDM
- - Compatible with any manufacturers Gig, 10 Gigabit CWDM SFPs
- - Designed and developed by Fiberdyne Labs, a 20-year optical engineering firm
Specifications:
Maximum Insertion Loss in dB for each passive CWDM filter
(Standard Temperature Range -20 to 75°C)
| Model | Maximum Insertion Loss (dB) | |||
| Add/Drop Multiplexer | Pass 1550 | Pass 1300 | Monitor | |
| CWDM-MUX8A= | 2.4 | - | - | 17 |
| CWDM-OADM4-x= | .4 | 2.5 | 2.5 | 17 |
| CWDM-OADM1-xxxx= | 1.8 | 1.7 | 1 | 17 |
| Specifications: CWDM OADM |
| Parameters | 1CH | 2Ch | 4Ch | 8Ch | ||
| Center Wavelength (nm) | ITU, ITU+1 | |||||
| Passband (nm) | ITU±6 | |||||
| Operating Wavelength (nm) | 1460~1620 or 1260~1620 | |||||
| Channel Space (nm) | 20 | |||||
| Fiber Type | SMF-28e or customer specified | |||||
| IL(dB) (P/A Grade) |
Add & Drop Channel | 0.5/0.6 | 0.7/1.0 | 1.4/1.7 | 2.0/2.5 | Express Channel | 0.6/0.8 | 1.2/1.4 | 1.8/2.0 | 3.6/3.8 |
| Isolation (dB) | Add & Drop Adjacent Channel | 30 | Add & Drop Non-Adjacent Channel | 50 | Express Channel | 25 |
| Ripple(dB) | 0.3 | 0.3 | 0.4 | 0.5 | ||
| Monitor | 17 | |||||
| PDL(dB) | 0.1 | |||||
| PMD(ps) | 0.1 | |||||
| RL(dB) | 45 | |||||
| Directive(dB) | 50 | |||||
| Maximum Optical Power(mw) | 500 | |||||
| Operating Temperature(°C) | -20~75 | |||||
| Storage Temperature(°C) | -40~85 | |||||
| LGX Package | 1U, 2U | |||||
| 19" Rack mount Package | 1U | |||||
| Notes:
1. Specified without connectors 2. Add an additional 0.2dB loss per connector |
| Fiberdyne Part Number |
Cisco® Part Number |
Description | Buy |
| FPM-CWDM-MUX8A-LGX | CWDM-MUX8A= | Fiberdyne Cisco® Compatible Passive Module 8-channel (1470, 1490, 1510, 1530, 1550, 1570, 1590, and 1610) Multiplexer/Demultiplexer with Monitor Ports |
Call to Order |
| FPM-CWDM-OADM4-1-LGX | CWDM-OADM4-1= | Fiberdyne Cisco® Compatible Passive Module 4 Channels (1470, 1490, 1510, and 1530) OADM with Monitor Ports |
Call to Order |
| FPM-CWDM-OADM4-2-LGX | CWDM-OADM4-2= | Fiberdyne Cisco® Compatible Passive Module 4 Channels (1550, 1570, 1590, and 1610) OADM with Monitor Ports |
Call to Order |
| FPM-CWDM-OADM1-1470-LGX | CWDM-OADM1-1470= | Fiberdyne Cisco® Compatible Passive Module Single-wavelength (1470) Dual-Channel OADM with Monitor Ports |
Call to Order |
| FPM-CWDM-OADM1-1490-LGX | CWDM-OADM1-1490= | Fiberdyne Cisco® Compatible Passive Module Single-wavelength (1490) Dual-Channel OADM with Monitor Ports |
Call to Order |
| FPM-CWDM-OADM1-1510-LGX | CWDM-OADM1-1510= | Fiberdyne Cisco® Compatible Passive Module Single-wavelength (1510) Dual-Channel OADM with Monitor Ports |
Call to Order |
| FPM-CWDM-OADM1-1530-LGX | CWDM-OADM1-1530= | Fiberdyne Cisco® Compatible Passive Module Single-wavelength (1530) Dual-Channel OADM with Monitor Ports and Upgrade Ports |
Call to Order |
| FPM-CWDM-OADM1-1550-LGX | CWDM-OADM1-1550= | Fiberdyne Cisco® Compatible Passive Module Single-wavelength (1550) Dual-Channel OADM with Monitor Ports |
Call to Order |
| FPM-CWDM-OADM1-1570-LGX | CWDM-OADM1-1570= | Fiberdyne Cisco® Compatible Passive Module Single-wavelength (1570) Dual-Channel OADM with Monitor Ports and Upgrade Ports |
Call to Order |
| FPM-CWDM-OADM1-1590-LGX | CWDM-OADM1-1590= | Fiberdyne Cisco® Compatible Passive Module Single-wavelength (1590) Dual-Channel OADM with Monitor Ports and Upgrade Ports |
Call to Order |
| FPM-CWDM-OADM1-1610-LGX | CWDM-OADM1-1610= | Fiberdyne Cisco® Compatible Passive Module Single-wavelength (1610) Dual-Channel OADM with Monitor Ports |
Call to Order |
Packaged in an LGX Module
| Fiberdyne Part Number |
Cisco® Part Number |
Description | Buy |
| FPM-CWDM-MUX-4-SF1-LGX | CWDM-MUX-4-SF1= | Fiberdyne Cisco® Compatible Passive Module 4 Channels (1470, 1510, 1550, and 1590) Single-Fiber Multiplexer/Demultiplexer (to be deployed always in conjunction with PN: FPM-CWDM-MUX-4-SF2-LGX) |
Call to Order |
| FPM-CWDM-MUX-4-SF2-LGX | CWDM-MUX-4-SF2= | Fiberdyne Cisco® Compatible Passive Module 4 Channels (1490, 1530, 1570, and 1610) Single-Fiber Multiplexer/Demultiplexer (to be deployed always in conjunction with PN: FPM-CWDM-MUX-4-SF1-LGX ) |
Call to Order |
On Network and 1300 Legs, LC Connector on 1550 Leg
| Fiberdyne Part Number |
Cisco® Part Number |
Description | Buy |

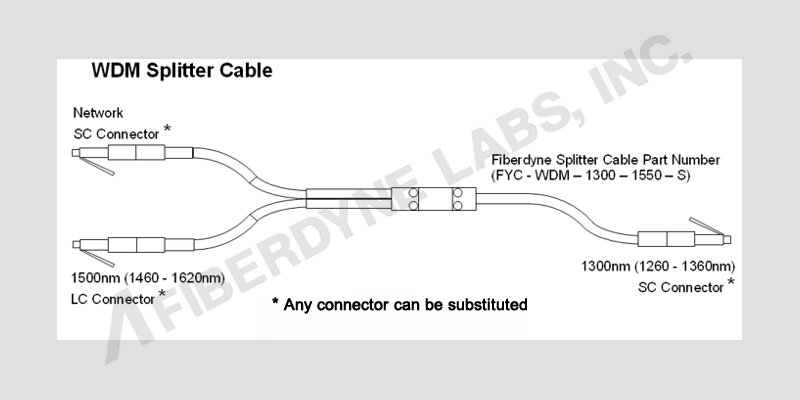

| FYC-WDM-1300-1550-S | WDM-1300-1550-S | Fiberdyne Cisco® Compatible "Y" cable Single Mode SC Connector on Network and 1300 Legs, LC Connector on 1550 Leg (Other connector configurations are available) |
Call to Order |
Cable Management
| Fiberdyne Part Number |
Cisco® Part Number |
Description | Buy |
| CTM-018 | N/A | Fiberdyne 19" 1U 3 Slot LGX Panel w/out | Call to Order |
| CTM-072 | N/A | Fiberdyne 19" 4U 12 Slot "L" Panel | Call to Order |
| Rackmount Panels for LGX-compatible components (CMT-18 & CMT-072) |
