5-Channel Multiplexers and Demultiplexers



Specifications:
Technical Data Sheet5-Channel Multiplexers and Demultiplexers Technical Data Sheet



Multiplexer

Fiberdyne Part Number Aurora™ Part Number Description
FCX-5200 OP34M5V-0-00-AS CWDM, 5 channels
at 1270, 1290, 1310, 1330 and 1350 nm,

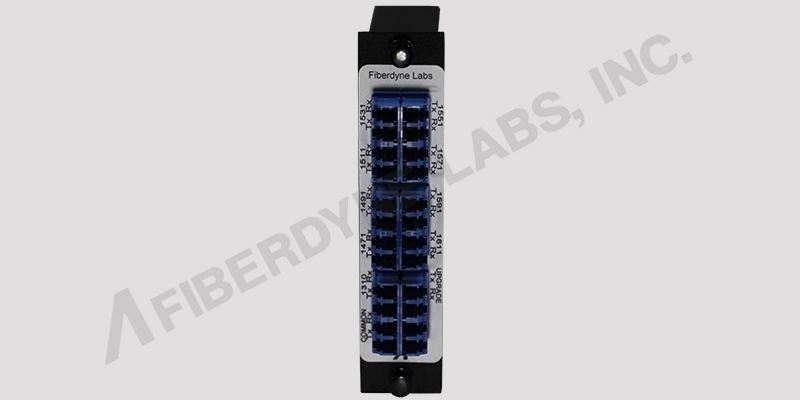

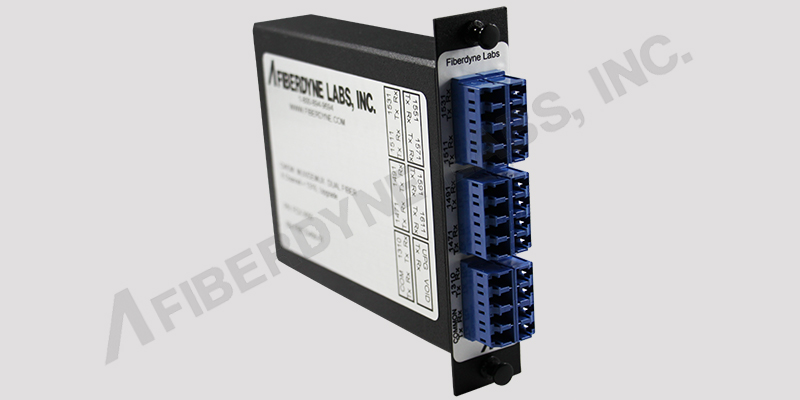

Single width, half depth LGX module with
cascade port and SC/APC connectors.
FCX-5220 OP34M5L-0-00-AS CWDM, 5 channels at
1430, 1450, 1470, 1490 and 1510 nm,
Single width, half depth LGX module with
cascade port and SC/APC connectors.
FCX-5240 OP34M5H-0-00-AS CWDM, 5 channels at
1530, 1550, 1570, 1590 and 1610 nm,
Single width, half depth LGX module with
cascade port and SC/APC connectors.
FCX-5260 OP34M5L-1-00-AS CWDM, 5 channels at
1430, 1450, 1470, 1490 and 1510 nm,
Single width, half depth LGX module with
cascade port, 1310 nm filter port and SC/APC connectors.
FCX-5280 OP34M5H-1-00-AS CWDM, 5 channels at
1530, 1550, 1570, 1590 and 1610 nm,
Single width, half depth LGX module with
cascade port, 1310 nm filter port and SC/APC connectors.
FCX-5300 OP34M5V-0-99-AS CWDM, 5 channels at
1270, 1290, 1310, 1330 and 1350 nm,
Single width, half depth LGX module with
cascade port, -20dB Test Point and SC/APC connectors.
FCX-5320 OP34M5L-1-99-AS CWDM, 5 channels at
1430, 1450, 1470, 1490 and 1510 nm,
Single width, half depth LGX module with
cascade port, 1310 nm filter port, -20dB Test Port and SC/APC connectors.
FCX-5340 OP34M5H-1-99-AS CWDM, 5 channels at
1530, 1550, 1570, 1590 and 1610 nm,
Single width, half depth LGX module with
cascade port, 1310 nm filter port, -20dB Test Port and SC/APC connectors.
New York



Demultiplexer

Fiberdyne Part Number Aurora™ Part Number Description
FCX-5360 OP34D5V-0-00-AS CWDM, 5 channels at
1270, 1290, 1310, 1330 and 1350 nm,
Single width, half depth LGX module with
cascade port and SC/APC connectors.
FCX-5380 OP34D5L-0-00-AS CWDM, 5 channels at
1430, 1450, 1470, 1490 and 1510 nm,
Single width, half depth LGX module with
cascade port and SC/APC connectors.
FCX-5400 OP34D5H-0-00-AS CWDM, 5 channels at
1530, 1550, 1570, 1590 and 1610 nm,
Single width, half depth LGX module with
cascade port and SC/APC connectors.
FCX-5420 OP34D5L-1-00-AS CWDM, 5 channels at
1430, 1450, 1470, 1490 and 1510 nm,
Single width, half depth LGX module with
cascade port, 1310 nm filter port and SC/APC connectors.
FCX-5440 OP34D5H-1-00-AS CWDM, 5 channels at
1530, 1550, 1570, 1590 and 1610 nm,
Single width, half depth LGX module with
cascade port, 1310 nm filter port and SC/APC connectors.
FCX-5460 OP34D5V-0-99-AS CWDM, 5 channels at
1270, 1290, 1310, 1330 and 1350 nm,
Single width, half depth LGX module with
cascade port, -20dB test point and SC/APC connectors.
FCX-5480 OP34D5L-1-99-AS CWDM, 5 channels at
1430, 1450, 1470, 1490 and 1510 nm,
Single width, half depth LGX module with
cascade port, 1310 nm filter port, -20dB Test Port and SC/APC connectors.
FCX-5500 OP34D5H-1-99-AS CWDM, 5 channels at
1530, 1550, 1570, 1590 and 1610 nm,
Single width, half depth LGX module with
cascade port, 1310 nm filter port, -20dB Test Port and SC/APC connectors.
New York



Fiberdyne Labs, Inc.
127 Business Park Drive, Frankfort, New York
Toll Free: 800-894-9694
Phone: 315-895-8470
Fax: 315-895-8436
Email:

Fiberdyne Labs, Inc. carries a complete line of CWDM products at our Frankfort, New York, facility.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
