Fiberdyne Labs Configuration 487 MPO MPO SM 24 Pin 24 Fiber to 24 Pin 24 Fiber Type A

Configuration 487 MPO MPO SM 24 Pin 24 Fiber to 24 Pin 24 Fiber Type A



Back to Singlemode Assemblies Page



View PDF Version

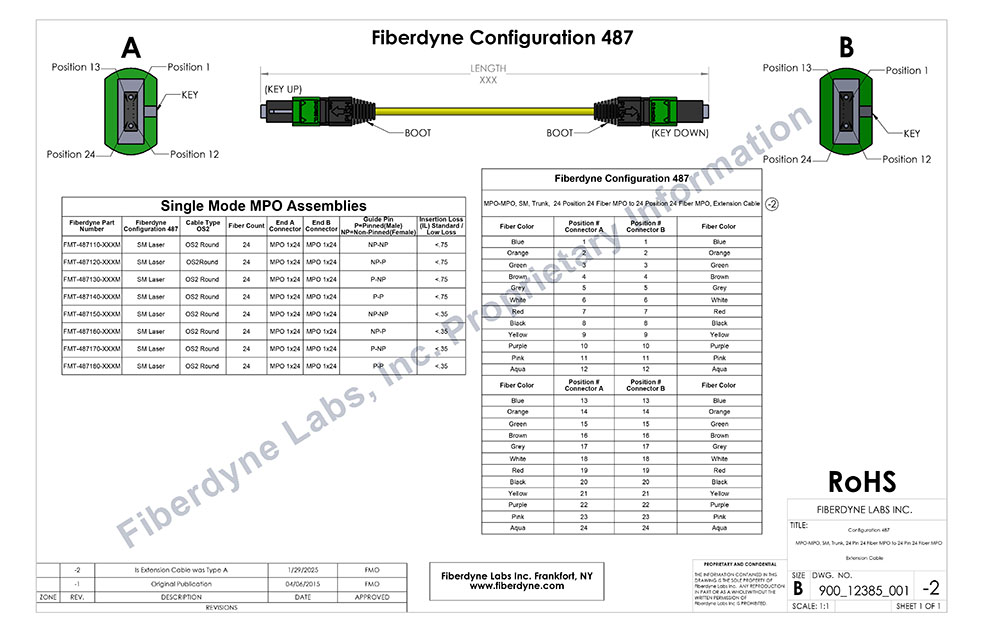

Note: Configurations illustrated below indicate an alignment pin option of No Pin to No Pin (NP-NP).
If other alignment pinning is required, see part number matrix in the drawing.
Prices are the same regardless of pinning.



OS2 3.0 Round Plenum Cable Assemblies
Fiberdyne
Part Number
Description Length Buy
FMT-487150-001M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 1 Meter Call to Order
FMT-487150-002M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 2 Meter Call to Order
FMT-487150-003M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 3 Meter Call to Order
FMT-487150-005M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 5 Meter Call to Order
FMT-487150-007M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 7 Meter Call to Order
FMT-487150-010M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 10 Meter Call to Order
FMT-487150-015M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 15 Meter Call to Order
FMT-487150-030M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 30 Meter Call to Order
FMT-487150-050M Configuration 487 Singlemode, 24 Pin 24 Fiber MPO to 24 Pin 24 Fiber MPO, NP-NP, .35dB, Type A, OS2 Plenum 50 Meter Call to Order

Fiberdyne Labs manufactures MPOs in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
