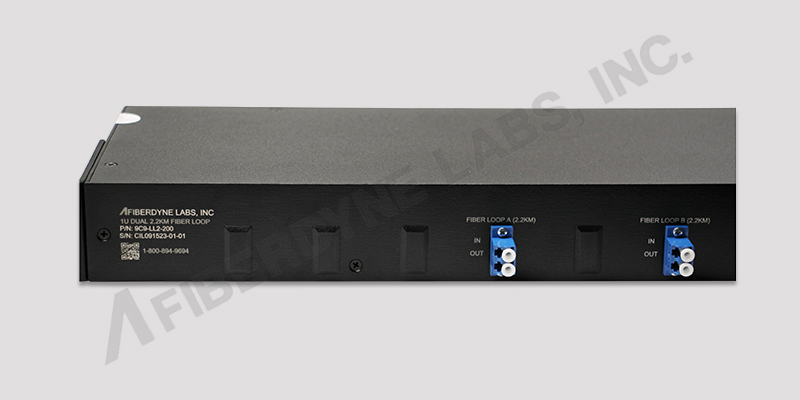

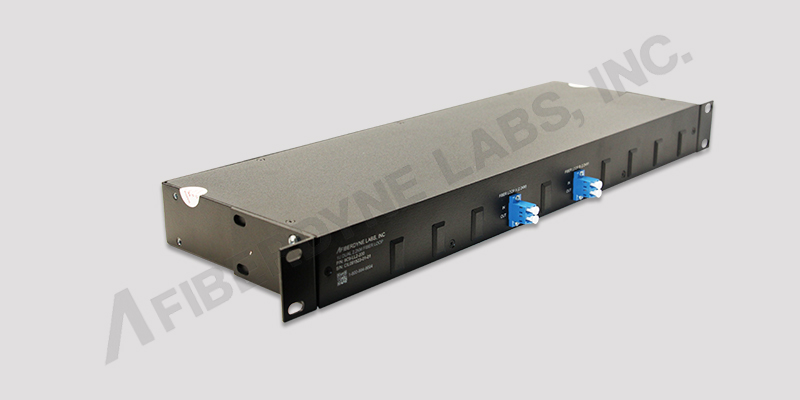

1U Rackmount Dual Fiber Loop Module



Introduction:

Fiberdyne Labs' 1U 19/23" Rackmount Dual Fiber Loop Module provides a convenient solution for lab fiber testing. The module consists of two separate fiber loops with multiple connector and length options.

Features:

• - 19" or 23" Rackmount Package
• - Multiple Connector Options
• - Low Insertion Loss
• - Corning SMF-28® Ultra Fiber



• Applications:
• - Lab Testing
• - OTDR Dead Zone Elimination



Ordering Information

Part Number Fiber Loop Length (Meters) Connector Type 9C9-662-200 2200 SC/UPC 9C9-772-200 2200 FC/UPC 9C9-AA2-200 2200 FC/APC 9C9-BB2-200 2200 SC/APC 9C9-LL2-200 2200 LC/UPC 9C9-NN2-200 2200 LC/APC 9C9-661-100 1100 SC/UPC 9C9-771-100 1100 FC/UPC 9C9-AA1-100 1100 FC/APC 9C9-BB1-100 1100 SC/APC 9C9-LL1-100 1100 LC/UPC 9C9-NN1-100 1100 LC/APC

Custom Lengths and connector types are available, please contact Fiberdyne Labs Sales for your custom requirements.



Specifications:
Technical Data Sheet

1U Rackmount Dual Fiber Loop Module
