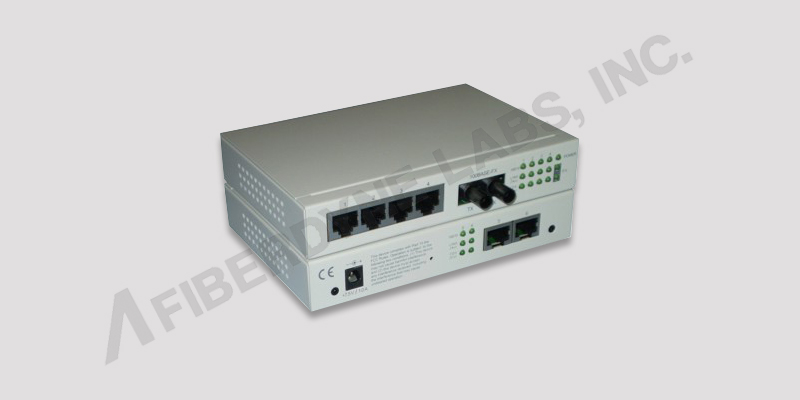

Fiberdyne Labs, Inc. 10/100Base Ethernet Managed 7 Port Switch with Fiber

10/100Base Ethernet Managed 7 Port Switch with Fiber

Introduction:
    Fiberdyne Labs, Inc 7 Port Managed Switch, which includes 6 10/100Base-TX ports and one 100Base-FX port. Management is conducted via a web-based browser. This capability includes port status/configuration, VLAN (Virtual Lan) and remote reboot.



    Product Highlights:
    - 7 Port Switch
    - Web Management
    - 6 FE 10/100 ports
    - 1 FE 100FX port
    - Compact Design
    - 802.1Q Tagged VLAN support
    - Fiber connectivity




PDF Version of Web page Technical Data Sheet



Conceptual Usage: Conceptual Usage



Features:
  • - Complies with IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX, 100Base-FX standards
  • - Provide 4/6 10/100Mbps Fast Ethernet ports and 1 100Base-FX port
  • - Each TP port supports auto-negotiation and auto-MDI/MDI-X detection
  • - Supports full/half duplex operation for each TP switched port
  • - Support a variety of fiber connectors such as ST, SC, MT-RJ, VF-45 and LC
  • - Multimode and singlemode fiber cables (model dependent)
  • - Self learning for active MAC addresses up to 2k entries
  • - Store-and-forward switching that only good packets are forwarded
  • - Forwarding and filtering at full wire speed
  • - Flow control for traffic congestion
  • - Broadcast packet storm protection
  • - Comprehensive LED indicators



Management Features:
  • - Web-based interface for easy management
  • - Static IP or DCHP supports for IP configuration
  • - Port Status and configuration
  • - VLAN configuration
  • - Security check for management login
  • - Restore factory default settings
  • - Remote Boot



Specifications:
Number of Ports 6 x 10/100TX ports with 1 x 100FX port
TX Ports IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX std.
Shielded RJ-45 jacks with Auto MDI-X detection
Auto-negotiation capable
Speed for 10Mbps or 100Mbps
Full-duplex or Half-duplex operation
FX Ports IEEE 802.3u 100Base-FX compliant
Fixed 100Mbps Full-duplex operation
Flow Control IEEE 802.3x pause packet for Full-duplex operation
Back pressure for Half-duplex operation
Cables 10Base-T: Cat. 3, 4, 5 or higher (100 meters max.)
100Base-TX: Cat. 5, 5e, or higher (100 meters max.)
100-FX: Multimode or Singlemode fiber cable
LEDs Power Status
TX ports: Speed, Lnk/Act, Duplex/Collision status
FX port: Link/Act status, Duplex/Collision status
Filtering Rate 14,880 pps for Ethernet (10Base-T)
148,800 pps for Fast Ethernet (100Base-TX)
Forwarding Rate 14,880 pps for Ethernet (10Base-T)
148,800 pps for Fast Ethernet (100Base-TX)
MAC Address Table 2K entries
Ageing Time 300 seconds
VLAN Mode Port-based VLAN, 802.1Q Tag-based VLAN
VLAN groups 16 groups (Group 0 ~ 15)
Port PVID Full 12-bit VID, per port setting
Port Tag Mode Tag/untag mode, per port setting
Environment Operating Temperature: 0°C ~ 40°C (Main Device)
Relative Humidity: 10% ~ 90% non-condensing
(* The operating temperature range of the bundled power
adapter may differ from the temperature range of the main device.)
Dimension 144 x 100 x 26 mm (WxDxH)
Power Input +5V ~ +12VDC (+/-5%) via external power adapter
Power Consumption 5.5 W max. @+5V (DC IN)
New York



Model Connector Fiber & Cable*¹ Wavelength TX Power*² Rx Sens. Rx Max.
VS-117MT ST Duplex MMF 1310nm -20 ~ -14dBm -32dBm -8dBm
VS-117MC SC Duplex MMF 1310nm -20 ~ -14dBm -31dBm 0dBm
VS-117MJ MT-RJ MMF 1310nm -19 ~ -14dBm -31dBm -14dBm
VS-117MS20 SC Duplex SMF 1310nm -15 ~ -7dBm -32dBm -3dBm
VS-117MS40 SC Duplex SMF 1310nm -5 ~ 0dBm -34dBm -3dBm
*1MMF: Multimode Fiber - 62.5/125µm, 50/125µm
    SMF: Singlemode Fiber - 9/125µm
*2 Data for 62/125µm MMF, 9/125µm SMF



Part Number Description Buy
VS-117MC Managed, 7 Port Switch,
Multimode, SC
Call to Order
VS-117MT Managed, 7 Port Switch,
Multimode, ST
Call to Order
VS-117MJ Managed, 7 Port Switch,
Multimode, MT-RJ
Call to Order
VS-117MS20 Managed, 7 Port Switch,
Single-mode SC, 20 km
Call to Order
VS-117MS40 Managed, 7 Port Switch,
Single-mode, SC, 40 km
Call to Order
New York

Fiberdyne Labs manufactures Office Switches in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
