FTTH Flat Drop Cable Assemblies
Introduction:

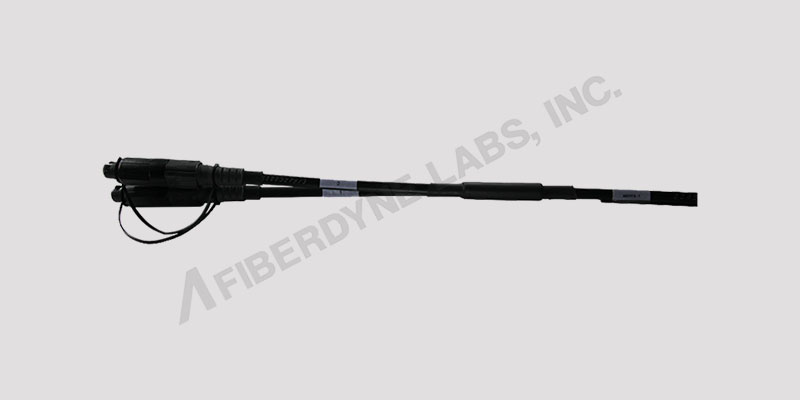

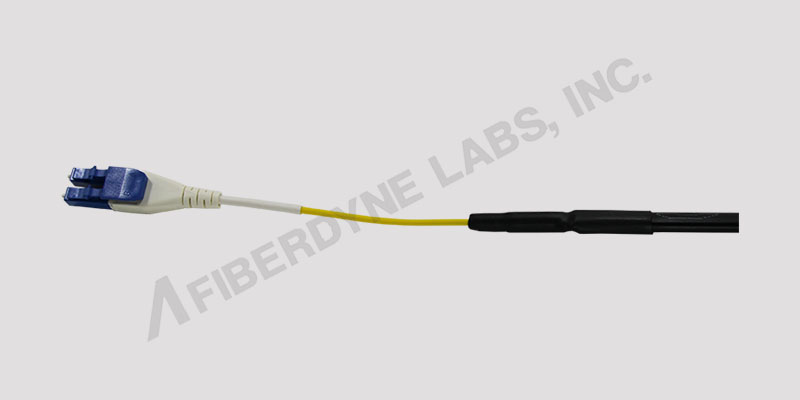

- Fiberdyne Labs is proud to offer our flat drop cable assemblies featuring Hardened Fiber Optic Connector (HFOC) compatible with Corning Optitap. Our flat drop assemblies are designed for Fiber-to-the-Home (FTTH) applications. Assemblies are available in standard 1 and 2 fiber configurations with traditional or HFOC connectors on either or both ends. Higher count cables, up to a maximum of 12 fibers, are available by special request.
Flat drop cables are proven, ruggedized Outside Plant (OSP) rated cable, containing a single gel-filled loose-tube, strength members, and an outer UV rated jacket. Cable options include an all dielectric version, and a toneable version which allows for traceability in underground installations.
Features/Benefits:
- - Standard 1 and 2 Fiber configurations

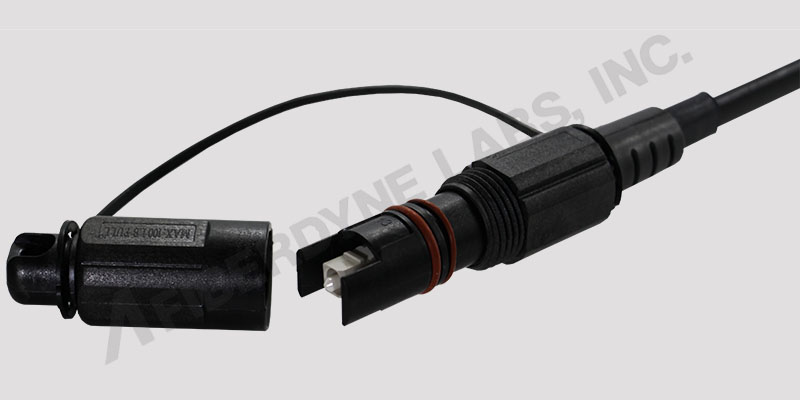

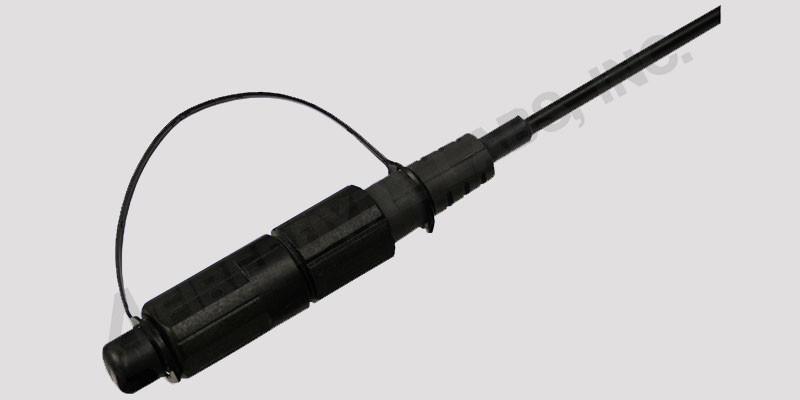

- - Standard Single mode Connectors, and HFOC (Corning Compatible Optitap®)
- - Available with Aerial (Dielectric) or Underground (Toneable) cable
- - Rugged UV jacket with strength members and gel-filled loose-tube
- - Economical solution for FTTH deployments
-
Specifications:
PDF Version of Web page
Ordering Information
| F | F | D | - | X | X | X | X | X | - | X | X | X | X | X | - | X | X | X |
| 4 | 5 | 6 | 7 | 8 | - | 9 | 10 | 11 | 12 | 13 | - | 14 | 15 | 16 | ||||
| FDD = Fiberdyne Flat Drop Cable Assembly | ||||||||||||||||||
| Digit 4-6 | Cable Type | 010 = 1 Fiber Dielectric Non-Toneable
01T = 1 Fiber Toneable 020 = 2 Fiber Dielectric Non-Toneable 02T = 2 Fiber Toneable 2D9 = 2 Fiber Dielectric Non-Toneable 900µm Subunit 2T9 = 2 Fiber Toneable 900µm Subunit 120 = 12 Fiber Dielectric Non-Toneable 12T = 12 Fiber Toneable |
|
| Digit 7 | Conn End A (Outside End) |
0 = No Connector
1 = Corning Compatible Optitap® HFOC 2 = Reserved 3 = FC/APC 4 = SC/APC 5 = ST/UPC |
6 = SC/UPC
7 = FC/UPC 8 = LC/UPC 9 = LC/APC Y = Custom (Customer Specified) |
| Digit 8 | Conn End B (Inside End) |
0 = No Connector
1 = Corning Compatible Optitap® HFOC 2 = Reserved 3 = FC/APC 4 = SC/APC 5 = ST/UPC |
6 = SC/UPC
7 = FC/UPC 8 = LC/UPC 9 = LC/APC Y = Custom (Customer Specified) |
| Digit 9-12 | Length | 0025 = 25
0050 = 50 •••• 2000 = 2000 |
|
| Digit 13 | Unit of Measure | F = Feet
M = Meters |
|
| Digit 14 | Coil or Reel | C = Coil
R = Reel |
|
| Digit 15-16 | Pulling Eye | 00 = No Pulling Eye
1P = Pulling Eye Outside End (A) 2P = Pulling Eye Both Ends |
|
1. Compatible Optitap® is a registered trademark of Corning Incorporated
