Fiberdyne Labs, Inc. 50/125 OM2 12 Pack, Color Coded Assemblies, 900um Pigtail

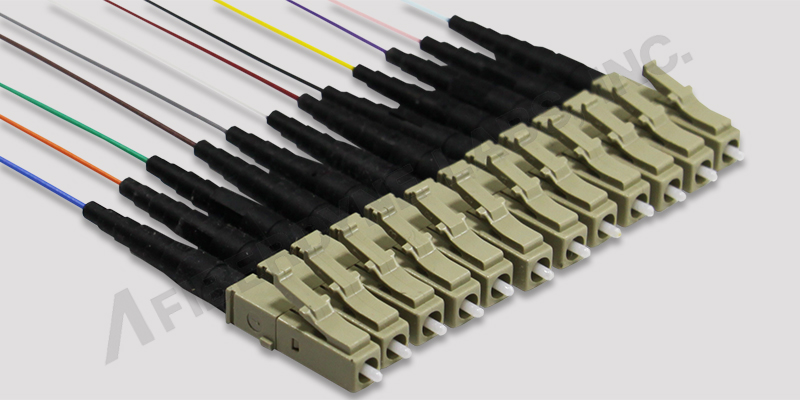

12 Fiber Multimode 900 Micron LC-Pigtail

50/125 OM2 12 Pack, Color Coded Assemblies

2 & 3mm cables available

Cable & Connector Specifications:
Fiber Type	50/125 OM2 Multimode
Insertion Loss Per Connector	< 0.3dB, Typical 0.25dB
Return Loss VS. Polish Type	UPC: > 50dB, Typical 55dB APC: > 60dB, Typical 65dB
Apex Offset	< 50µm
Fiber Height	< 100nm
Repeatability	> 500 Cycles
Operating Temperature	-40°C To +75°C
Humidity Range	5% To 95% (Non-Condensing)
Strain Relief Boot Lengths	2.2cm to 3.5cm Available

50/125 OM2 12 Pack Color Coded 900µm Pigtail Assemblies
LC-Pigtail 12 Pack	F9G1BC4GCL0XXXM12P	Specify Length When Ordering
SC-Pigtail 12 Pack	F9G1BC4GC60XXXM12P	Specify Length When Ordering
ST-Pigtail 12 Pack	F9G1BC4GC10XXXM12P	Specify Length When Ordering
FC-Pigtail 12 Pack	F9G1BC4GC70XXXM12P	Specify Length When Ordering

Other Connector Combinations available.

New York

Fiberdyne Labs manufactures Singlemode & Multimode Assemblies in a variety of configurations.
Call your Fiberdyne Sales Representative at 800-894-9694 or email us at
