100GHz DWDM 4-Skip 0 Band Filter



Introduction:
    100GHz DWDM 4-Skip 0 Band Filter

Features:
  • - High Isolation
  • - Low Insertion Loss
  • - Complies with RoHS
  • - Complies with Telcordia GR-1209, GR-1221

Applications:
  •     - Local Area Networks
  •     - FTTH Networks
  •     - CATV
  •     - OADM
New York



Technical Date Sheet 100GHz DWDM 4-Skip 0 Band Filter Technical Date Sheet



Specifications:

Parameters Unit Specification
Center WavelengthnmITU Grid
Pass Channel Bandwidth (Min)nm2.7
Pass Channel Insertion Loss (Typical) dB ≤1.0 (0.6)
Adjacent/Non-Adjacent Isolation ≥25/35
Ripple ≤0.3
Reflect Channel Insertion Loss (Typical) dB ≤0.6 (0.25)
Isolation (Typical) ≥10 (18)
Return Loss/Directivity (Typical) dB≥45/50 (50/55)
Polarization Dependent Loss dB≤0.1
Insertion Loss Temp. Sensitivity dB/°C≤0.005
Power Handling mW300
Operating Temperature °C-5~70



5th DigitFunction4S0 = 1 x 2 4-SKIP-0
6th & 7th DigitsChannel4S0 = 1 x 2 4-SKIP-0
8th DigitChannel Bandwidth (Min)1 = 2.7nm
9th & 10th DigitsITU ChannelXX = Channel # ie
See ITU Grid for Channel nm
(CH 10-CH 63)
21 = 21 CH#
22 = 22 CH#
31 = 31 CH#
41 = 41 CH#
.....
XX = Others
11th DigitPackaging Dimension (mm)1 = Steel Tube
H = Heavy Duty
12th DigitFiber Type1 = 250µm
9 = 900µm
2 = 2mm
3 = 3mm
13th DigitFiber Length1 = 1 meter
X = Custom
14th Digit Connector Type 0 = None
1 = ST/UPC
6 = SC/UPC
7 = FC/UPC
A = FC/APC
B = SC/APC
L = LC/UPC
N = LC/APC
X = Custom



FDDW 4S01 XX11 10
     5678 9101112 1314
Fiberdyne Labs, Inc. 100GHz DWDM 4-Skip 0 Band Filter



Package Dimensions:

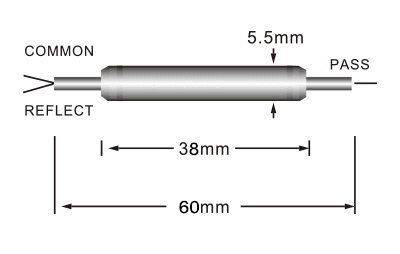

CWDM Drawing

Example: FDDW4S01601110
This gives you 100GHz DWDM 4-Skip 0 Band Filter, 1x2, Channel 58-55, 250um fiber with no connectors.



Fiberdyne Labs, Inc. Dense Wavelength Division Multiplexing (DWDM)
ITU Grid: C-Band, 100 GHz Spacing
ChannelFrequency Wavelength spacer ChannelFrequencyWavelength
(#)(GHz)(nm)(#) (GHz)(nm)
11901001577.0337 1937001547.72
21902001576.20 381938001546.92
31903001575.37 391939001546.12
41904001574.54 401940001545.32
51905001573.71 411941001544.53
61906001572.89 421942001543.73
71907001572.06 431943001542.94
81908001571.24 441944001542.14
91909001570.42 451945001541.35
101910001569.59 461946001540.56
111911001568.11 471947001539.77
121912001567.95 481948001538.98
131913001567.13 491949001538.19
141914001566.31 501950001537.40
151915001565.50 511951001536.61
161916001564.68 521952001535.82
171917001563.86 531953001535.04
181918001563.05 541954001534.25
191919001562.23 551955001533.47
201920001561.42 561956001532.68
211921001560.61 571957001531.90
221922001559.79 581958001531.12
231923001558.98 591959001530.33
241924001558.17 601960001529.55
251925001557.36 611961001528.77
261926001556.56 621962001527.99
271927001555.75 631963001527.22
281928001554.94 641964001526.44
291929001554.13 651965001525.66
301930001553.33 661966001524.89
311931001552.52 671967001524.11
321932001551.72 681968001523.34
331933001550.92 691969001522.56
341934001550.12 701970001521.79
351935001549.32 711971001521.02
361936001548.52 721972001520.25
