Fiber Optic CATV Node Entrance Cables



Introduction:
    Fiberdyne Labs Node Entrance cable assemblies set the standard for CATV/MSO outdoor fiber optic service. Customer bandwidth demands are driving high fiber count densities in outdoor enclosures and nodes. The Fiberdyne Labs solution provides high quality, singlemode fiber in a weatherproof, anodized, solid aluminum housing with a 5/8” rotational nut for very easy installation; Right Angle Rotational Nut Housing available; cabling does not need to be rotated during the install process. FC/APC, SC/APC, LC/APC or MPO connectors are available featuring low insertion loss and back reflection. Fiberdyne utilizes the latest polishing and test equipment with guaranteed certified results

Features/Benefits:

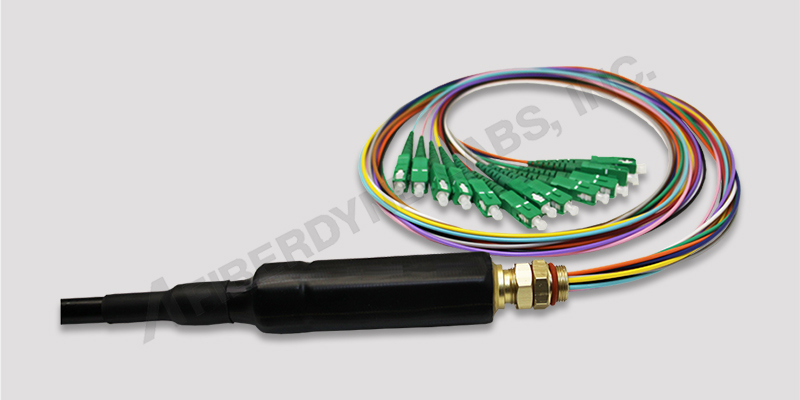

  • - Standard 5/8" mounting nut with O-rings
  • - Rotational Nut for very simple installation

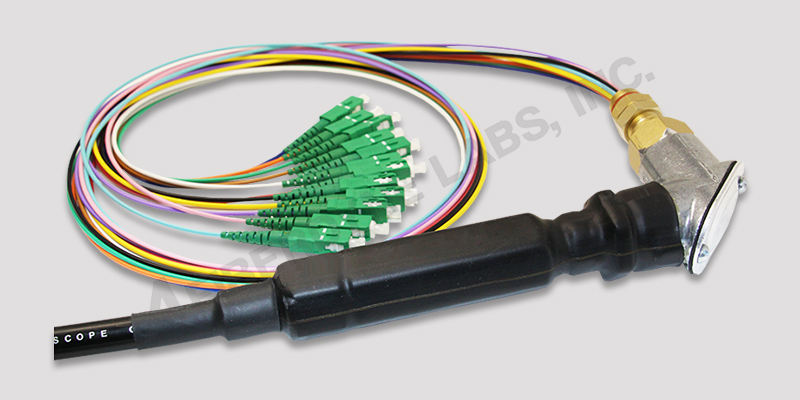

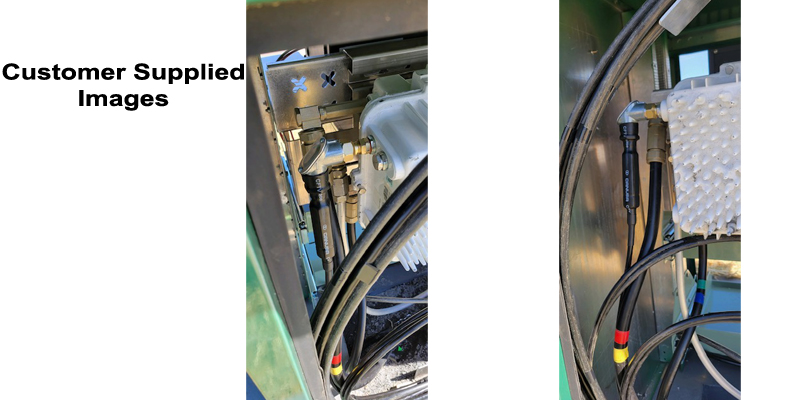

  • - Right Angle Rotational Nut available
  • - Armored or Non-Armored cable for your system
  • - Weatherproof design - Potted breakout point
  • - Standard lengths: 50, 75, 100, 125, 150 feet
  • - Custom lengths available to meet your exact needs

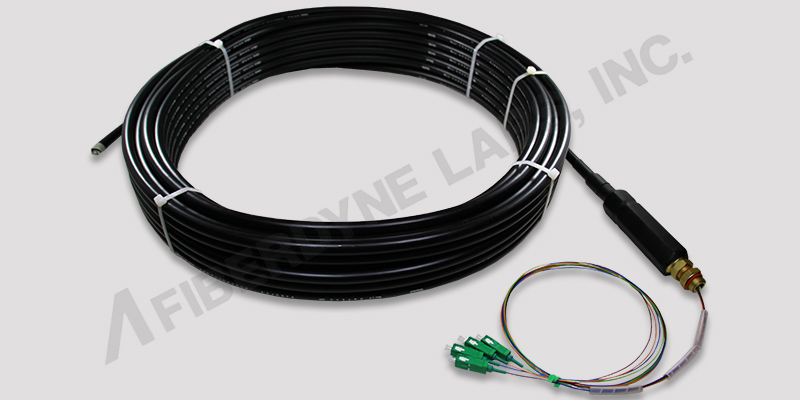

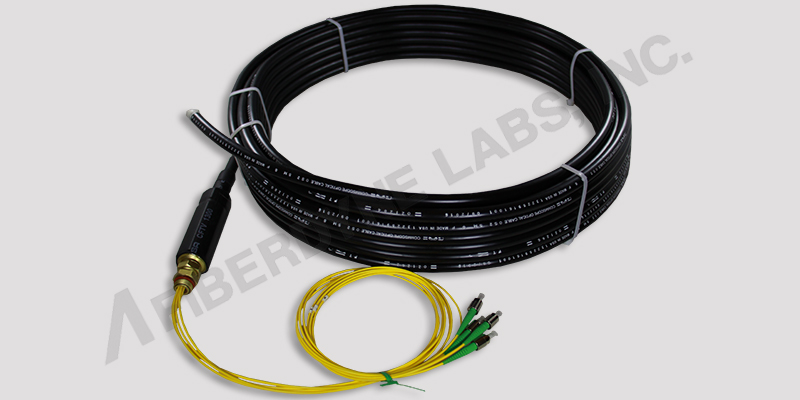

  • - 900µ or 2mm, Color Coded jacketed breakout options

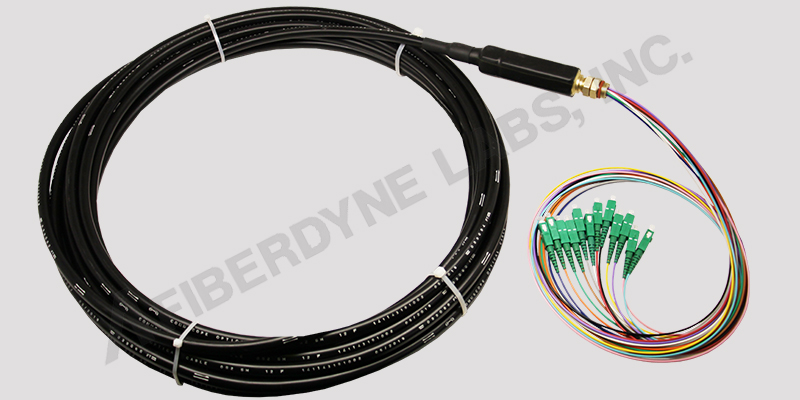

  • - Standard 6/12/24 fibers or custom 1-24 fiber connectorization options
  • - Applications: CATV/MSO Node Entrance Cable
        (a.k.a. Service cables, Node cables, Node Tails, Stub Cable),
        Local Fiber Loops (FTTx), Fiber-to-the-home (FTTH), Cellular Backbone



Fiber Optic Entrance Cable
Ordering Information
F E X - X X X X - X X X
    3 - 4 5 6 7 - 8 9 10
FE = Fiber Optic Node/Entrance Cable





3rd. Digit Cable Type 0 = Armored
1 = Non-Armored
2 = Reserved
3 = Reserved
4th. Digit Fiber Type 0 = 900µm color coded
2 = 2MM yellow (available up to 12 fibers)
3 = Obsolete
4 = 900µm/2MM combination (specify)
5 = 1.6mm yellow (available up to 12 fibers)
6 = 2mm color coded (available up to 12 fibers)
5th. Digit Feed Through Housing
Option
0 = With rotational nut & connector one end
1 = Reserved
2 = Nut on both ends connector both ends
3 = Nut on one end, connector both ends
9 = Right Angle Rotational Nut
6th. Digit Connector Type X = Custom Configuration
0 = FC/APC
1 = SC/APC
2 = FC/UPC
3 = SC/UPC
4 = ST/UPC
5 = LC/UPC
6 = LC/APC
7 = (1) MPO/MTP(M)¹ Only
8 = (2) MPO/MTP(M)¹ w/(8) SC/APC's
9 = (3) MPO/MTP(M)¹ Only
A = (4) MPO/MTP(M)¹ Only
B = (1) MPO/MTP (M) 8F ELITE w/12 SC/APC
C = Combination ½ SC/APC & ½ LC/UPC
7th. Digit Fiber Count 2 = 6 Fibers with 2 Connectorized
3 = 6 Fibers with 4 Connectorized
4 = 6 Fibers with 6 Connectorized
5 = 12 Fibers with 2 Connectorized
6 = 12 Fibers with 4 Connectorized
7 = 12 Fibers with 6 Connectorized
8 = 12 Fibers with 12 Connectorized
9 = 12 Fibers with 8 Connectorized
A = 12 Fibers with 10 Connectorized
B = 24 Fibers with 24 Connectorized
C = 24 Fibers with 18 Connectorized
D = 24 Fibers with 12 Connectorized
E = 48 Fibers with 48 Connectorized
F = 48 Fibers with 36 Connectorized
G = 48 Fibers with 32 Connectorized
H = 24 Fibers with 20 Connectorized
8th, 9th, & 10th. Digits Cable Length Examples:
0 5 0 =   50 feet
0 7 5 =   75 feet
1 2 5 = 125 feet
1 5 0 = 150 feet
etc.

        *Standard 8 Fiber Male Elite used. Alternative options available.



12 Fiber Entrance Cable Available:
Call your Fiberdyne Labs, Inc.
Sales Representative for more information.
XXX=Length



Part Number
Armored-900um
Description
(Most Entrance Cables Are 900um Buffered)
Price
FE0-0012-XXX 6 Fiber with 2 connectorized SC/APC Call to Order
FE0-0013-XXX 6 Fiber with 4 connectorized SC/APC Call to Order
FE0-0014-XXX 6 Fiber with 6 connectorized SC/APC Call to Order
FE0-0032-XXX 6 Fiber with 2 connectorized SC/UPC Call to Order
FE0-0033-XXX 6 Fiber with 4 connectorized SC/UPC Call to Order
FE0-0034-XXX 6 Fiber with 6 connectorized SC/UPC Call to Order
FE0-0062-XXX 6 Fiber with 2 connectorized LC/APC Call to Order
FE0-0063-XXX 6 Fiber with 4 connectorized LC/APC Call to Order
FE0-0064-XXX 6 Fiber with 6 connectorized LC/APC Call to Order
FE0-0052-XXX 6 Fiber with 2 connectorized LC/UPC Call to Order
FE0-0053-XXX 6 Fiber with 4 connectorized LC/UPC Call to Order
FE0-0054-XXX 6 Fiber with 6 connectorized LC/UPC Call to Order
FE0-0002-XXX 6 Fiber with 2 connectorized FC/APC Call to Order
FE0-0003-XXX 6 Fiber with 4 connectorized FC/APC Call to Order
FE0-0004-XXX 6 Fiber with 6 connectorized FC/APC Call to Order
FE0-0022-XXX 6 Fiber with 2 connectorized FC/UPC Call to Order
FE0-0023-XXX 6 Fiber with 4 connectorized FC/UPC Call to Order
FE0-0024-XXX 6 Fiber with 6 connectorized FC/UPC Call to Order
FE0-0042-XXX 6 Fiber with 2 connectorized ST/UPC Call to Order
FE0-0043-XXX 6 Fiber with 4 connectorized ST/UPC Call to Order
FE0-0044-XXX 6 Fiber with 6 connectorized ST/UPC Call to Order



12 Fiber Entrance Cable Available:
Call your Fiberdyne Labs, Inc.
Sales Representative for more information.
XXX=Length



Part Number
Unarmored-900um
Description
(Most Entrance Cables Are 900um Buffered)
Price
FE1-0012-XXX 6 Fiber with 2 connectorized SC/APC Call to Order
FE1-0013-XXX 6 Fiber with 4 connectorized SC/APC Call to Order
FE1-0014-XXX 6 Fiber with 6 connectorized SC/APC Call to Order
FE1-0032-XXX 6 Fiber with 2 connectorized SC/UPC Call to Order
FE1-0033-XXX 6 Fiber with 4 connectorized SC/UPC Call to Order
FE1-0034-XXX 6 Fiber with 6 connectorized SC/UPC Call to Order
FE1-0062-XXX 6 Fiber with 2 connectorized LC/APC Call to Order
FE1-0063-XXX 6 Fiber with 4 connectorized LC/APC Call to Order
FE1-0064-XXX 6 Fiber with 6 connectorized LC/APC Call to Order
FE1-0052-XXX 6 Fiber with 2 connectorized LC/UPC Call to Order
FE1-0053-XXX 6 Fiber with 4 connectorized LC/UPC Call to Order
FE1-0054-XXX 6 Fiber with 6 connectorized LC/UPC Call to Order
FE1-0002-XXX 6 Fiber with 2 connectorized FC/APC Call to Order
FE1-0003-XXX 6 Fiber with 4 connectorized FC/APC Call to Order
FE1-0004-XXX 6 Fiber with 6 connectorized FC/APC Call to Order
FE1-0022-XXX 6 Fiber with 2 connectorized FC/UPC Call to Order
FE1-0023-XXX 6 Fiber with 4 connectorized FC/UPC Call to Order
FE1-0024-XXX 6 Fiber with 6 connectorized FC/UPC Call to Order
FE1-0042-XXX 6 Fiber with 2 connectorized ST/UPC Call to Order
FE1-0043-XXX 6 Fiber with 4 connectorized ST/UPC Call to Order
FE1-0044-XXX 6 Fiber with 6 connectorized ST/UPC Call to Order

Fiberdyne Labs manufactures fiber optic Singlemode and Multimode Assemblies in a variety of configurations. Call your Fiberdyne Sales Representative at 800-894-9694 or email us at

Technical Data:

Fiberdyne Fiber Optic Cable Assemblies
