1577nm XGSPON WDM Reflector

Description:

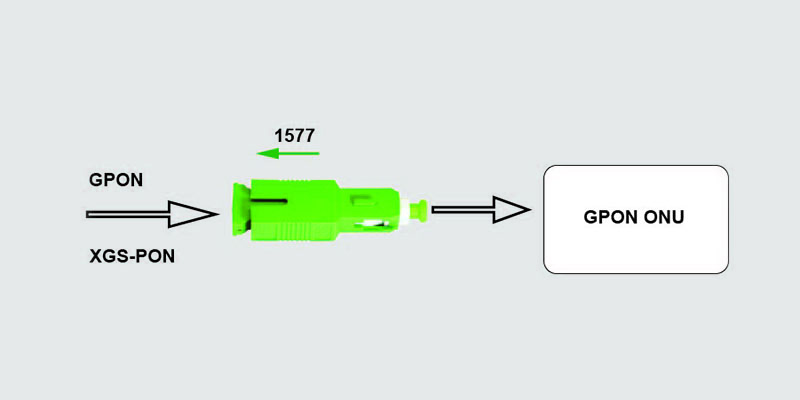

1577nm fiber grating filter is an important device for communication link detection in the field of optical communication. The principle is equivalent to a band pass filter, which completely reflects back the light from 1572nm to 1582nm (the return ratio is more than 99.5%), and all other wavelengths of light pass through. When used in the field of communication, it can separate the communication light from the detection light, prevent the detection light from passing through and thus affect the communication signal. At the same time, it can detect the return light at the control end. Its advantages are accurate control, stable operation and long service life.



• Features:
  - The grating is embedded in the optical fiber and is not affected by environmental pollution
  - High reliability and long service life
  - High reflectivity (higher than 99.5%) for the band to be blocked, close to total reflection
  - Accurate wavelength control of reflection band (1572nm~1582nm)
  - The transition zone at the bandpass edge is very narrow (less than 2nm), and it is all-pass when passing
     through this zone
  - Based on FBG technology
  - Easy to install
  - Exceptional reliability and environmental stabiliity
  - RoHs compliant



• Applications:
  - FTTX network
  - FTTX troubleshooting



Specifications:
1577nm Technical Data Sheet



Performance Specifications

No Parameters         1 Pass Bandwidth nm 1260-1560 2 Reflect Band Wavelength nm 1572~1582 3.1 IL 1260nm-1360nm dB     1.4 3.2 IL 1460nm-1560nm dB     1.4 3.3 IL 1560nm-1570nm dB     2.0 3.4 IL Reflect Band dB 21     4.1 ORL 1260nm-1360nm dB 35     4.2 ORL 1460nm-1560nm dB 35     4.3 ORL 1560nm-1570nm dB 20     4.4 Reflect Band Note 3 dB 0   1.0 5 TDL 1260nm-1600nm dB     0.4 6 Reflect Band dB     0.6 7 Max Power Handling dBm 27     8 Plug Times   500     9 Input/Output SC/APC Male & SC/APC Female



No Parameter Specification Units Note 3.1 Operation Temperature -25~+65 °C --- 3.2 Operation Humidity 5~95 %RH --- 3.1 Storage Temperature -40~+85 °C --- 3.2 Storage Humidity 5~95 %RH ---



Absolute Maximum Ratings

Parameters Conditions Specifications Unit   Min. Max. Operating Temperature   -20 75 °C Operating Humidity Non-Condensing Environment 0 95 %RH Storage Temperature   -40 85 °C Storage Humidity Non-Condensing Environment 0 95 %RH

Notes:
(*) ORL (dB) = -10 log 10 (Reflected Power/Input Power) [dB]
(**) IL (dB) -10 log 10 (Output Power/Input Power) [dB]
(***) To measurethe Return Loss of reflect band, the light of the 1650nm should be injected from the female side of reflector.



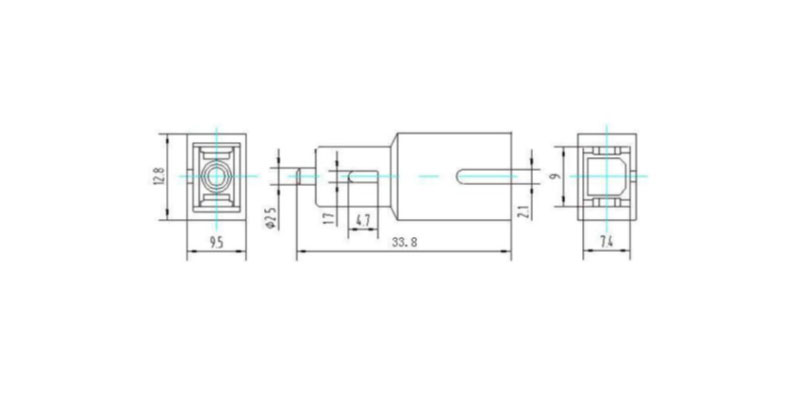

Part Number Description FWRB1577 1577nm OTDR WDM Reflector

New York



---

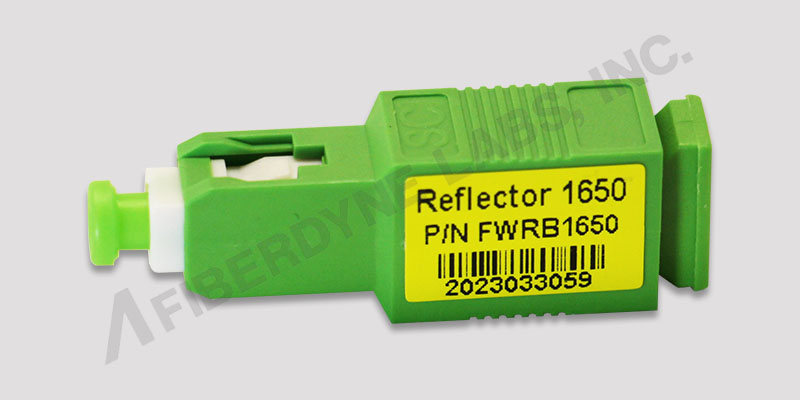

1650nm OTDR WDM Reflector

Description:

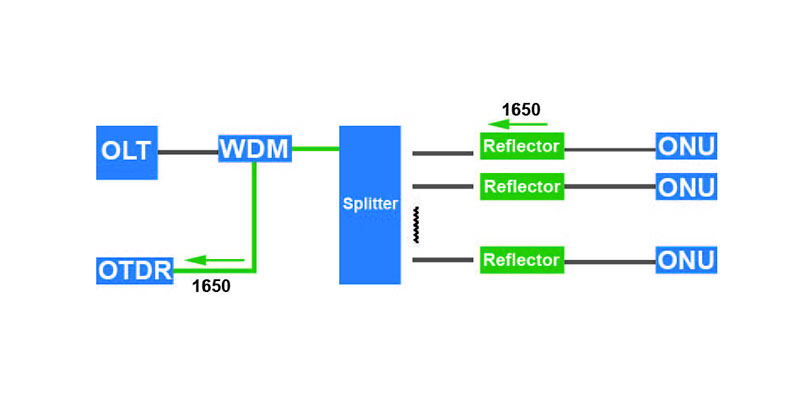

1650nm fiber grating filter is an important device for communication link detection in the field of optical communication. The principle is equivalent to a band pass filter, which completely reflects back the light from 1645nm to 1655nm (the return ratio is more than 99.5%), and all other wavelengths of light pass through. When used in the field of communication, it can separate the communication light from the detection light, prevent the detection light from passing through and thus affect the communication signal. At the same time, it can detect the return light at the control end. Its advantages are accurate control, stable operation and long service life.



• Features:
  - The grating is embedded in the optical fiber and is not affected by environmental pollution
  - High reliability and long service life
  - High reflectivity (higher than 99.5%) for the band to be blocked, close to total reflection
  - Accurate wavelength control of reflection band (1645nm~1655nm)
  - The transition zone at the bandpass edge is very narrow (less than 2nm), and it is all-pass when passing
     through this zone
  - Based on FBG technology
  - Easy to install
  - Exceptional reliability and environmental stabiliity
  - RoHs compliant

• Applications:
  - FTTX network
  - FTTX troubleshooting



Specifications:
1650nm Technical Data Sheet



Optical Specifications

Parameters Specification Wavelength Range (nm) Pass Band 1260~1360 & 1460~1600 & 1600~1625 Reflection Band 1644.5~1655.5 IL Pass Band @1260-1360 dB ≤1.4 Pass Band @1460-1600 dB ≤1.4 Pass Band @1600-1625 dB ≤3.4 Reflect Band @1644~1655.5 dB ≥21 RL Reflect Band @1260-1360 dB ≥35 Reflect Band @1460-1600 dB ≥30 Reflect Band @1600-1625 dB ≥20 Reflect Band @1644.5~1655.5 dB ≤1 PDL (dB) ≤0.3 TDL (dB) ≤0.5 Ripple (dB) ≤0.5 Maximum Optical Power Handling (dBm) 27 Plug Times (Times) ≤500 Input/Output Connectors *SC/APC

Note: SC/UPC, LC/UPC and LC/APC type are all available on request.



Absolute Maximum Ratings

Parameters Conditions Specifications Unit   Min Max Operating Temperature   -20 75 °C Operating Humidity Non-Condensing Environment 0 95 %RH Storage Temperature   -40 85 °C Storage Humidity Non-Condensing Environment 0 95 %RH



Part Number Description FWRB1650 1650nm OTDR WDM Reflector
